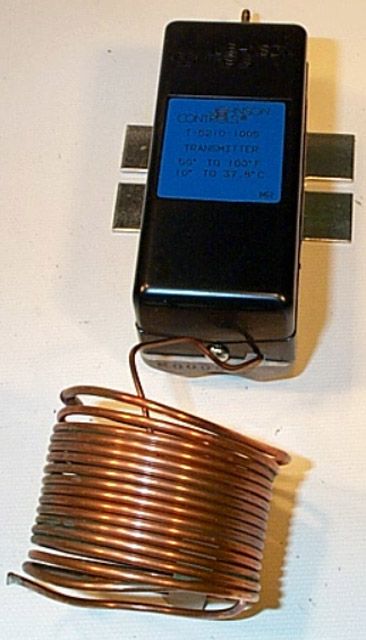

Johnson Controls T-5210-1009 Pneumatic Temperature Transmitter 0-100F

Product Description

The Johnson Controls T-5210-1009 is a pneumatic temperature transmitter designed for precise temperature measurement. It operates within a range of zero to one hundred degrees Fahrenheit. The unit includes an eight-foot copper averaging element along with a one-foot copper capillary. This design allows accurate temperature readings even in challenging environments.

• Provides an exact proportional relationship between the measured temperature and the transmitted signal.
• Includes appropriate brackets for mounting to ductwork, walls, or directly to the hub of a duct flange.
• Operates in any position from a rigid, flat mounting surface.

Product Highlights

This transmitter enhances the control process by converting temperature measurements into a pneumatic signal. It is suitable for various HVAC applications and improves efficiency in industrial settings.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: T-5210-1009

Technical Specifications

• Temperature Range: 0-100°F
• Copper Averaging Element Length: 8 feet
• Copper Capillary Length: 1 foot
• Operating Position: Any position on a flat, rigid surface
• Mounting Options: Ductwork, walls, or duct flange
• Pneumatic Feedback: Yes
