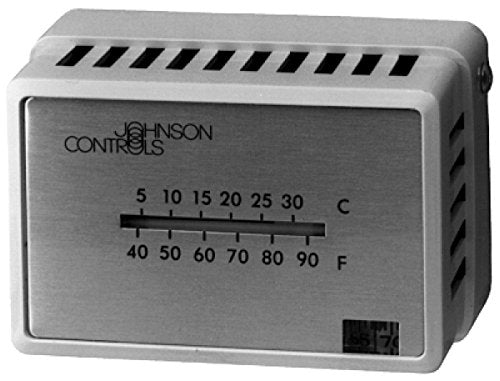

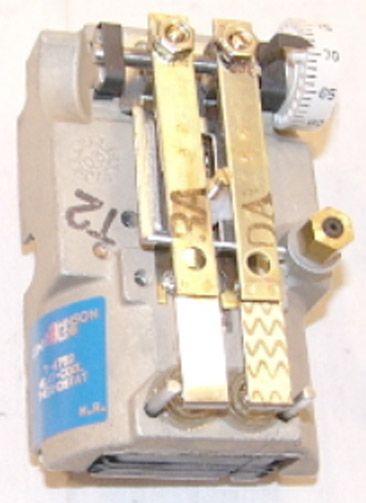

Johnson Controls T-4752-206 Heating-Cooling Thermostat 15 psig REV 20 psig DIR Vertical

Product Description

The Johnson Controls T-4752-205 series thermostat is designed for both heating and cooling applications within HVAC systems. This model is ergonomically vertical-mounted and swiftly modulates between direct and reverse actions based on the operational demand, adjusting automatically between 15 and 20 psig.

• Automatic changeover between direct action and reverse action ensures consistent operational efficiency.
• Robust design suited for vertical mounting in diverse environments.
• High volume output, perfect for substantial HVAC systems.

Product Highlights

This thermostat efficiently meets the demands of a variety of climate control settings, ensuring optimal performance in both directional settings. Its vertical design simplifies installation and maximizes functionality in constrained spaces.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-4752

Technical Specifications

• MPN: T-4752-206
• Action Type: Direct and Reverse Acting
• Control Air Pressure: 15 to 20 psig
• Temperature Control Range: 55 to 85 degrees Fahrenheit
• Max. Ambient Temperature: 135 degrees Fahrenheit
• Dimensions: Height 2 and 3/32 inches, Width 3 and 1/8 inches, Depth 1 and 3/4 inches
