Johnson Controls T-4752-205 Pneumatic Room Thermostat 15#rev20#dir HORIZONTAL

Product Description

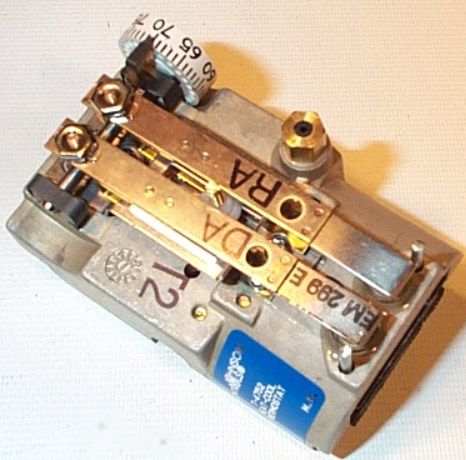

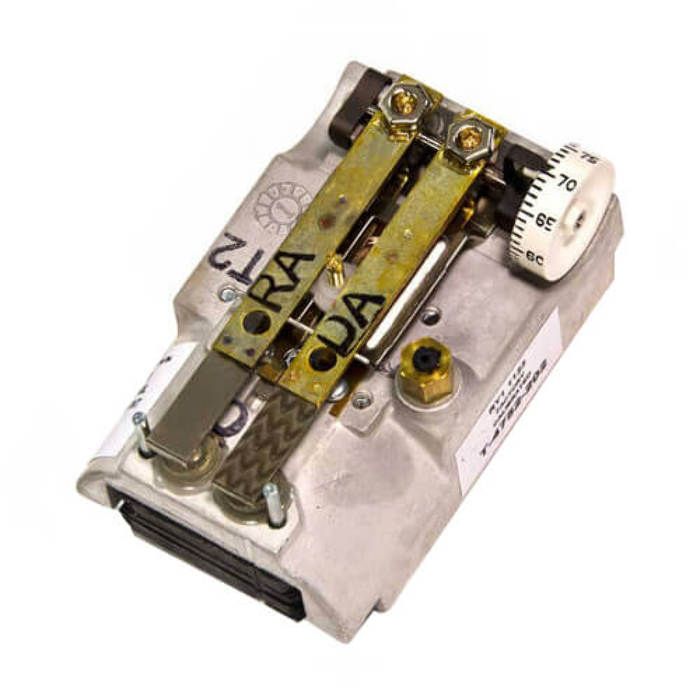

The Johnson Controls T-4752-205 is a pneumatic room thermostat designed for heating and cooling applications. This model features a dual action mechanism with a reverse acting setting at 15 psig and a direct acting setting at 20 psig. The temperature dial range spans from fifty-five to eighty-five degrees Fahrenheit, allowing for precise adjustments. Its two-dial system includes a single dial that adjusts both set points, facilitating user-friendly operation. This thermostat is geared for horizontal mounting, making installation straightforward in various setups.

• Includes Fahrenheit dial for easy temperature monitoring
• Suitable for heating and cooling applications
• Compact design for effective space management

Product Highlights

Utilizing pneumatic feedback technology, this thermostat ensures efficient control over temperature fluctuations, contributing to energy savings and enhanced comfort.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: T-4752-205

Technical Specifications

• Type: Pneumatic Room Thermostat
• Action: Dual Direct and Reverse Acting
• Pressure Settings: 15 psig Reverse, 20 psig Direct
• Temperature Range: 55 F to 85 F
• Mounting: Horizontal
• Dimensions: 4.2 inches x 3.8 inches x 2.85 inches
• Weight: 0.42 lbs
• Availability: Out of Stock
