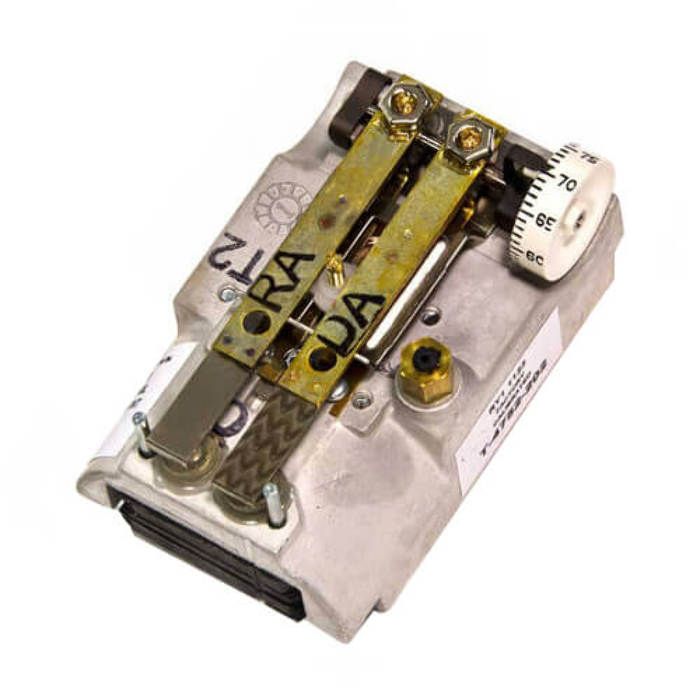

Johnson Controls T-4752-201 Pneumatic Thermostat High Performance

Product Description

The Johnson Controls T-4752-201 Pneumatic Thermostat ensures reliable and precise temperature control for HVAC applications. Designed for horizontal installation, this product seamlessly transitions between heating and cooling systems.

• Direct and reverse acting capabilities with 15 psi and 20 psi settings respectively.
• High volume output suitable for both commercial and industrial environments.
• Manual override available for convenient temperature adjustments.

Product Highlights

With a temperature range of 55 to 85 degrees Fahrenheit, the Johnson Controls T-4752-201 offers versatility and can handle the demanding conditions of various buildings. Its robust and simple design makes it ideal for direct installation into most HVAC systems without the need for extensive modifications.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-4752

Technical Specifications

• Dimensions: 4.3 inches in length, 3.8 inches in width, 2.9 inches in height
• Weight: 0.4 pounds
• Temperature Range: 55 to 85 degrees Fahrenheit
• Control Air Pressure: 3 to 15 psi
• Max. Air Pressure: 25 psi
• Element Type: Bi-Metal
• Mounting Style: Horizontal
• Connection Type: 5/32 inch Barb
