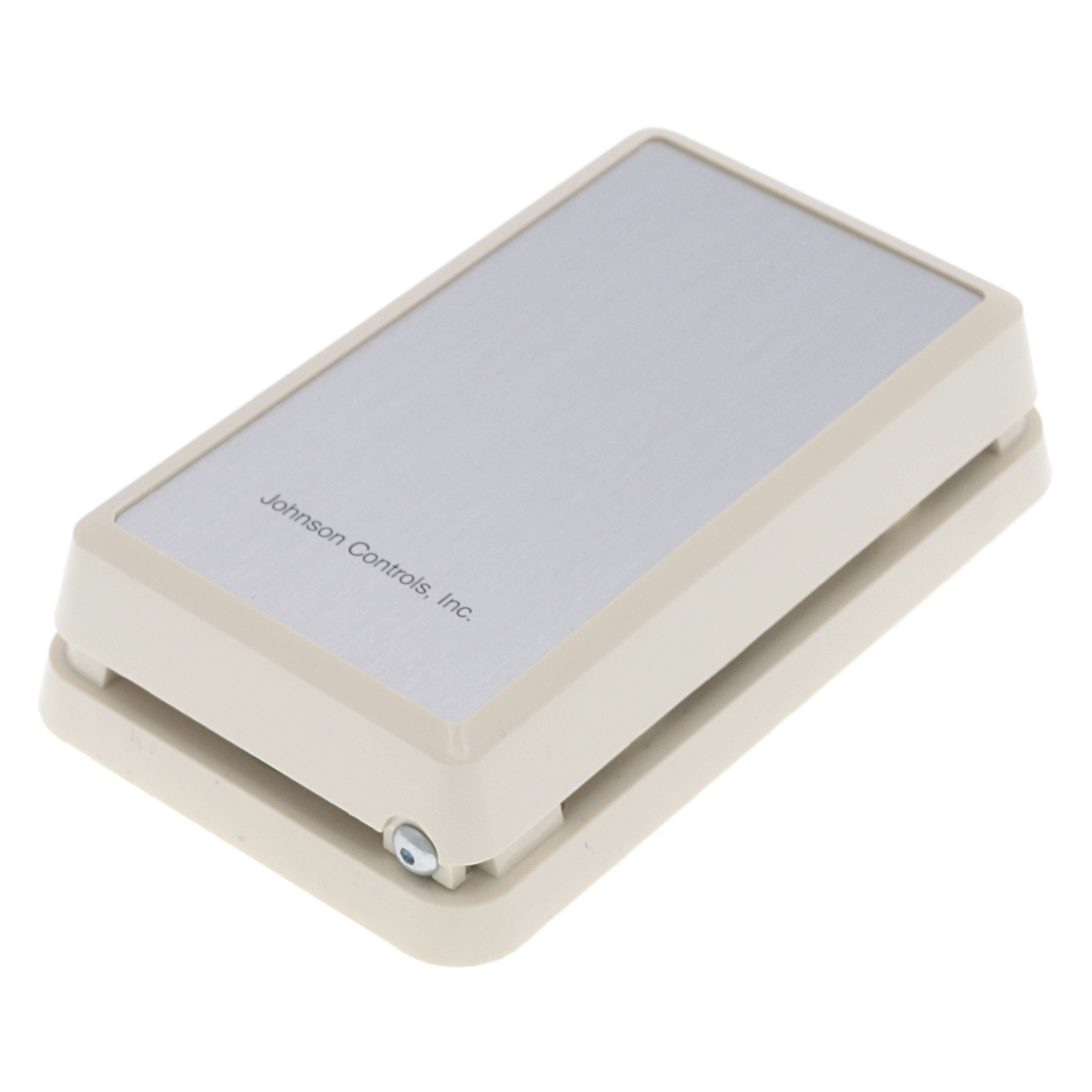

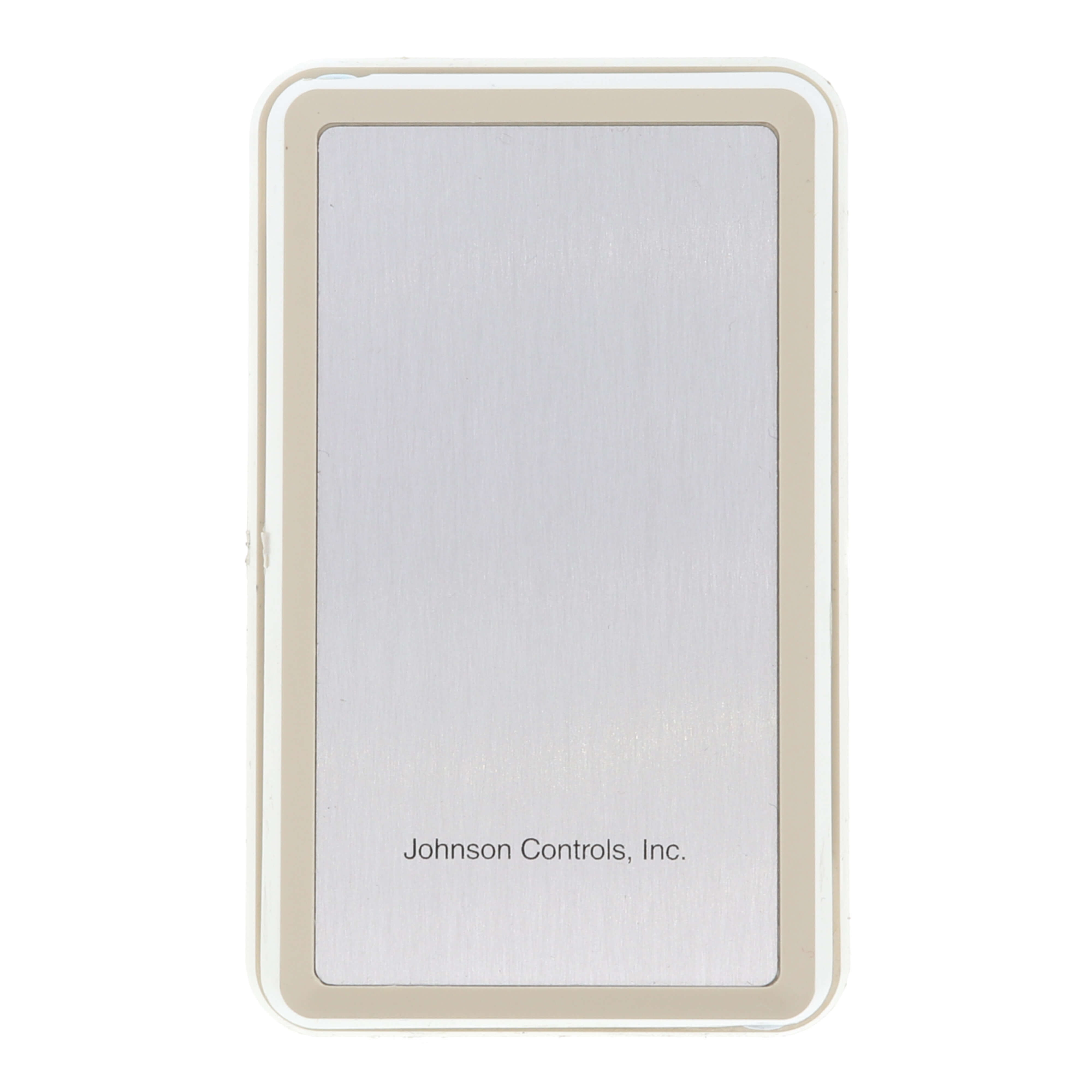

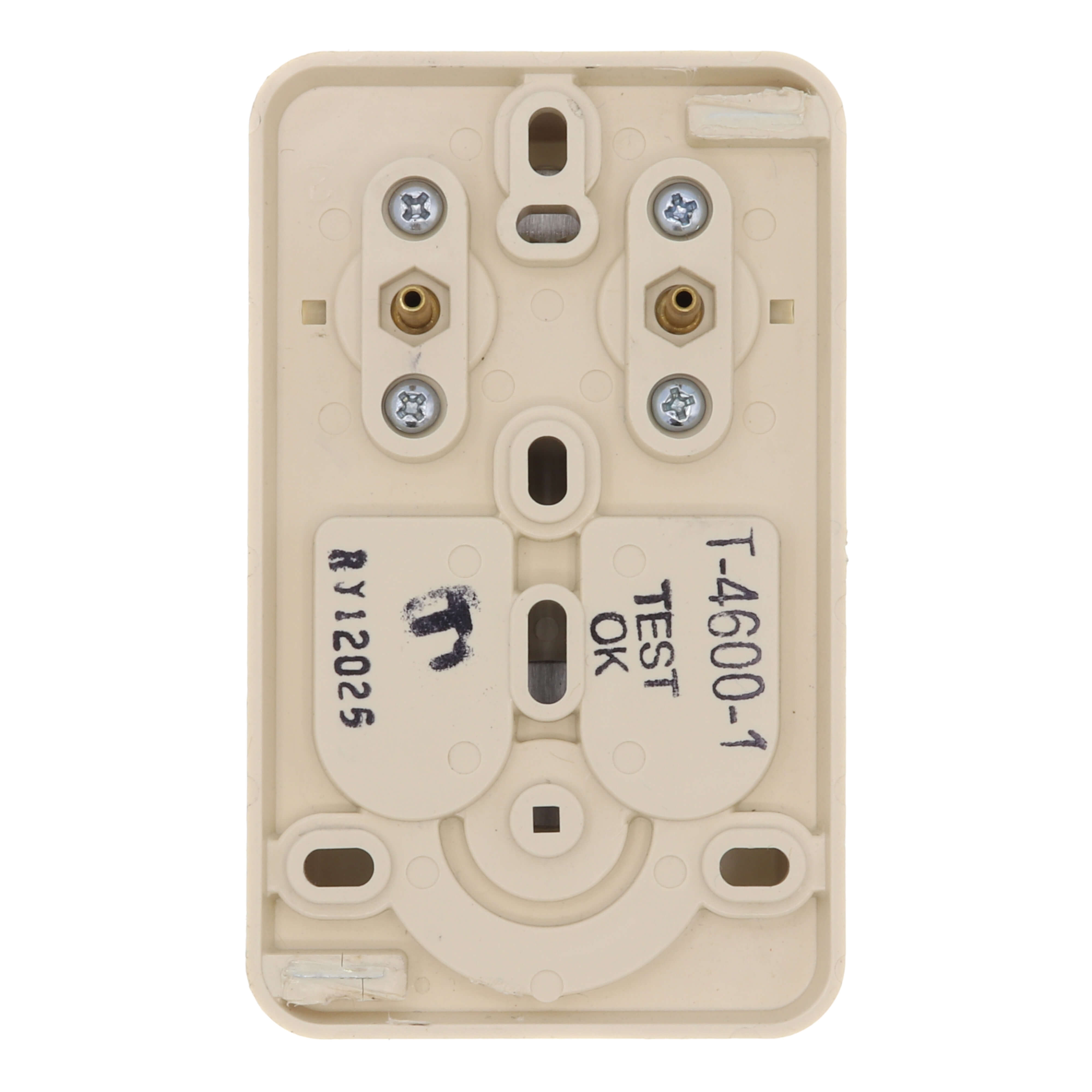

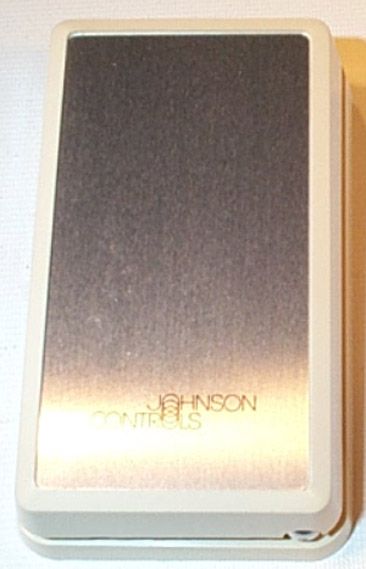

Johnson Controls T-4600-1 Pneumatic Room Thermostat 55-85F

Product Description

Johnson Controls T-4600-1 is a pneumatic room thermostat designed for effective temperature control in varied heating and cooling applications. It operates within a temperature range of fifty-five to eighty-five degrees Fahrenheit. This thermostat features two output connections for heating and cooling functions.

• Energy manager heating-cooling thermostat
• Two adjustable outputs with individual sensitivities
• Supports both heating and cooling modes

Product Highlights

The T-4600-1 promotes energy efficiency by allowing independent set points for heating and cooling, which helps to minimize energy waste through careful modulation of HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-4600-1

Technical Specifications

• Weight: 0.30 pounds
• Model: T-4600
• Temperature Range: 55°F to 85°F
• Control Type: Direct Acting
• Application: Single-stage heating and cooling
• Mounting Type: Vertical
