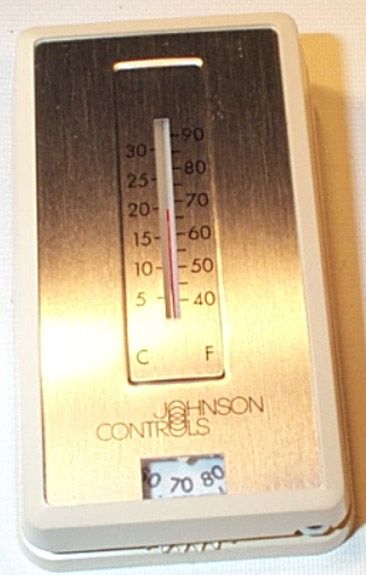

Johnson Controls T-4100-2 Pneumatic Thermostat, RA, 13 to 25 psi

Product Description

The Johnson Controls T-4100-2 Pneumatic Thermostat regulates temperature in heating and cooling applications. It operates within a pressure range of 13 to 25 psi, making it suitable for various systems.

• Mounts vertically for easy installation.
• Single temperature control with adjustable set points.
• Compatible with most pneumatic systems.

Product Highlights

This thermostat features a standard thermometer for reading temperatures in Fahrenheit and Celsius. It includes provisions for either exposed or concealed set point adjustments and requires only one air connection with a remote restrictor.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-4100-2

Technical Specifications

• Temperature Control Range: 55 to 85 degrees F
• Action Type: Reverse Acting
• Installation Type: Vertical Mount
• Weight: 0.4 pounds
• Dimensions: 6.2 inches (L) x 8.7 inches (W) x 1.5 inches (H)
• Air Pressure Settings: 13 psi (Day) / 25 psi (Night)
• Air Connection Size: 1/8 inches
• Type: Pneumatic Thermostat
