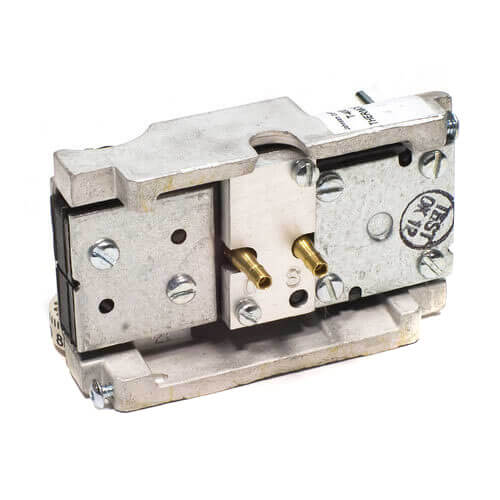

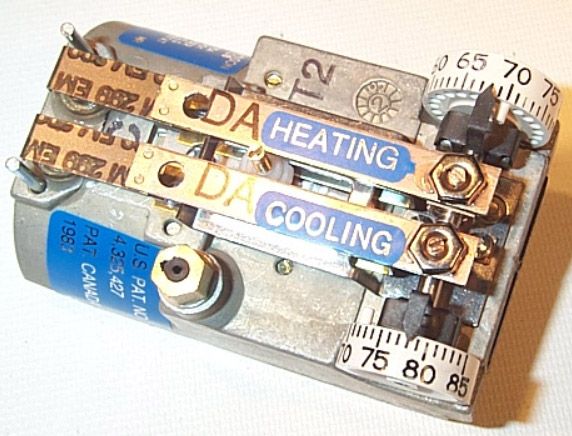

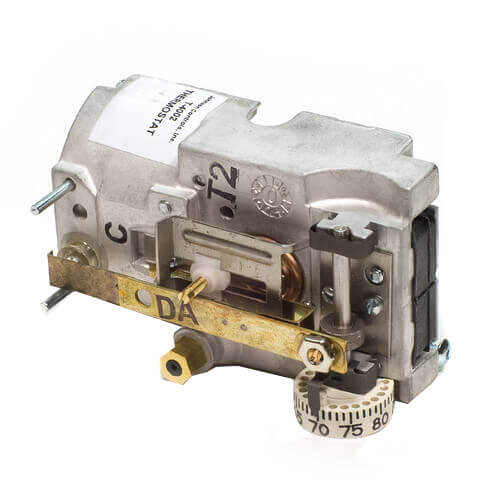

Johnson Controls T-4054-1 Pneumatic Thermostat DA 55 to 85 Degree F

Product Description

The Johnson Controls T-4054-1 Pneumatic Thermostat is designed for effective temperature control in HVAC systems, ranging from 55 to 85 degrees Fahrenheit. This thermostat offers dynamic functionality for both heating and cooling operations.

• Direct acting with adjustable deadband of 0 to 30 degrees F
• High volume output design suitable for heating-cooling energy management
• Durable construction ensures reliable performance

Product Highlights

Constructed to enhance energy efficiency by preventing simultaneous heating and cooling, which can lead to energy waste. This model is specifically designed for horizontal mounting and offers a user-friendly interface.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-4054

Technical Specifications

• Type: Pneumatic Thermostat
• Temperature Range: 55 to 85 degrees F
• Control Air Pressure: 3 to 15 psi
• Max. Air Pressure: 25 psi
• Throttling Range: 1 to 5 psi
• Mounting Style: Horizontal
• Dimensions: Height 2 inches, Width 3.1 inches, Depth 1.75 inches
