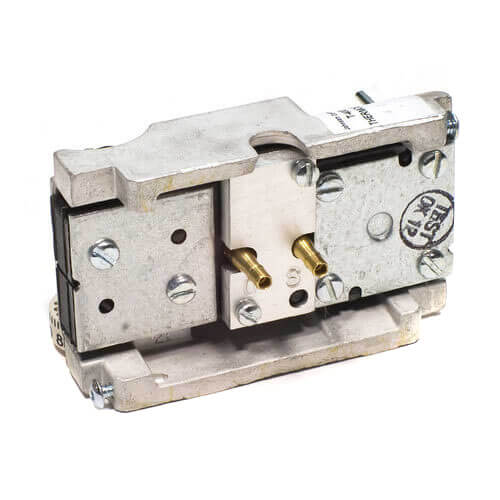

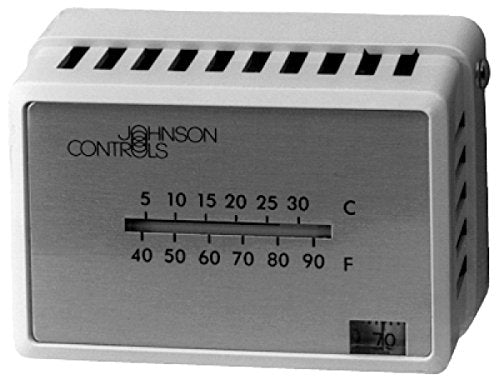

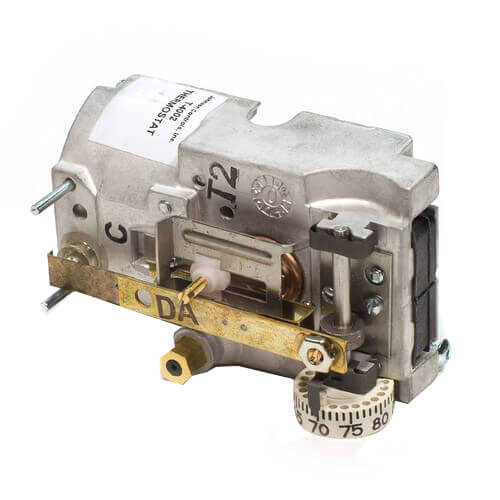

Johnson Controls T-4003-203 Submaster High Volume Output Thermostat Reverse Acting Horizontal Mounting

Product Description

The Johnson Controls T-4003-203 Submaster Thermostat is designed for high volume output and reverse acting function. This pneumatic thermostat offers precise temperature control for various heating and cooling applications, ensuring efficient operation of mechanical systems.

• Adjustable sensitivities and set points
• High volume output
• Pneumatic feedback for greater accuracy

Product Highlights

Johnson Controls T-4003-203 Submaster High Volume Output Thermostat Reverse Acting Horizontal Mounting

Product Information

Standard Information

• Category: Thermostat
• Brand: Johnson Controls
• Product Type: Pneumatic Control
• Mounting Direction: Horizontal

Technical Specifications

• Model: T-4003-203
• Air Consumption: 20 scim
• Overall Depth: 1.75 inches
• Overall Width: 3.125 inches
• Overall Height: 2.125 inches
• Temperature Range: 55 to 85 degrees Fahrenheit
• Maximum Air Pressure: 25 psig
• Number of Pipes: 1
• Temperature Settings: Single Temperature
• Connection Outside Diameter: 1/8 inch
• Mounting Direction/Includes Cover: Horizontal, No
