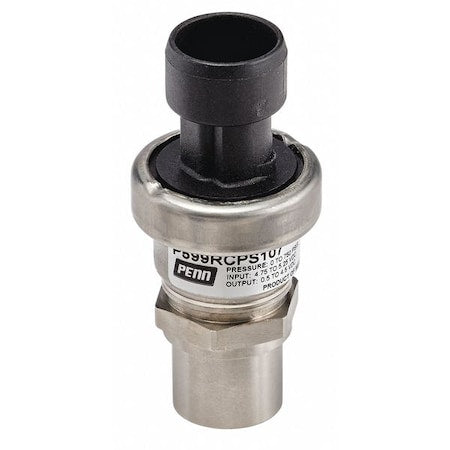

Johnson Controls P599VCPS107C Pressure Transducer 304L SS 0 to 750 psi

Product Description

The Johnson Controls Pressure Transducer model P599VCPS107C is crafted from durable 304L stainless steel and designed to measure pressures ranging from 0 to 750 psi. Ideal for various applications, this device offers reliable performance under a wide range of temperatures.

• Accurate to within +/-1.50 percent across its full scale
• Equipped with a 3-Pin Packard connector for straightforward electrical connections
• Features an IP67 enclosure rating, making it dust tight and immersion-resistant up to one meter of water

Product Highlights

Delivering both robustness and precision, this pressure transducer operates effectively within a temperature range of -40 Degrees F to 212 Degrees F. It is suitable for use with any corrosive or non-corrosive media compatible with 304L stainless steel, such as water and refrigerants.

Product Information

Standard Information

• Pressure Range: 0 psi to 750 psi
• Output Signal: 0 to 10V DC

Technical Specifications

• Pressure Range: 0 psi to 750 psi
• Process Connection Size: 1/4 inch SAE 45 degrees Flare Internal Thread
• Material: 304L Stainless Steel
• Maximum Operating Temperature: 212 degrees Fahrenheit
• Minimum Operating Temperature: -40 degrees Fahrenheit
• Electrical Connection: 3-Pin Packard Connector
• IP Rating: IP67
• Accuracy: +/-1.50%
