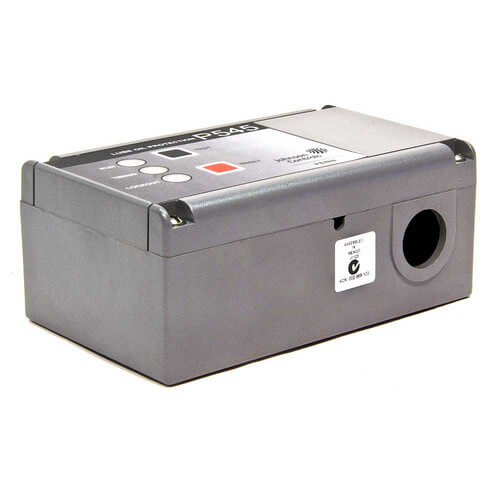

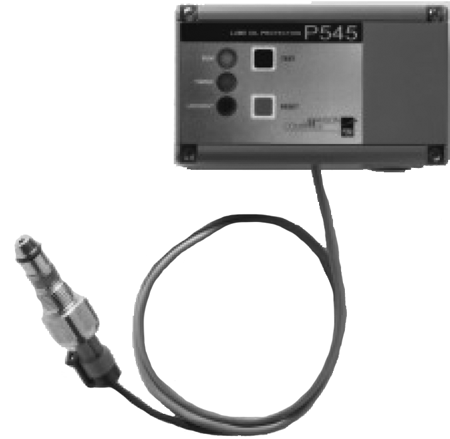

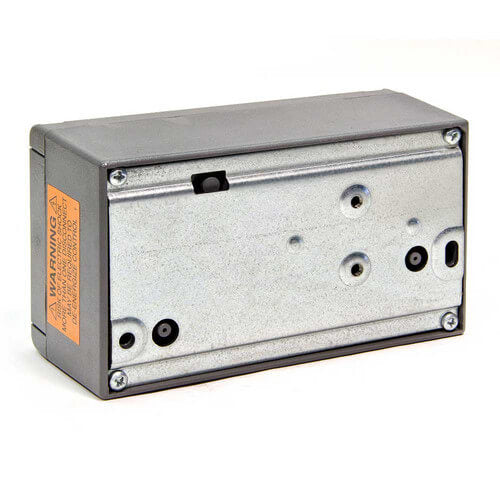

Johnson Controls P545NCB-82C Lube Oil Control for Carlyle Compressors

Product Description

The Johnson Controls P545NCB-82C is an electronic lube oil control designed for Carlyle compressors. This control helps ensure optimal lubrication of refrigeration compressors equipped with oil pumps. It continuously monitors oil pressure and prevents compressor operation if the pressure drops below the necessary threshold for too long.

• Built-in test circuit for effective monitoring
• User-friendly display panel for easy status checks
• Improved noise immunity for reliable performance

Product Highlights

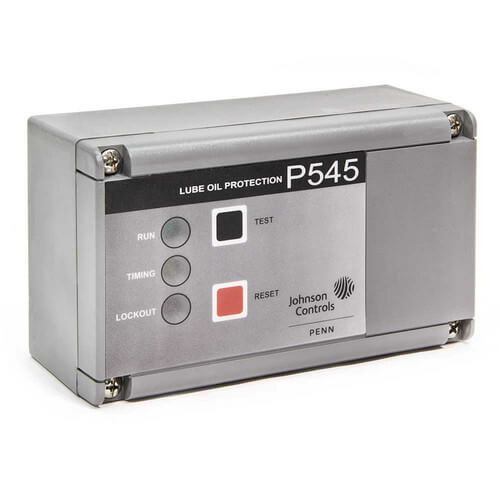

This lube oil control includes front-mounted Light-Emitting Diodes (LEDs) that display system status. It features a user-selectable minimum-off time to reduce compressor short cycling. The P545 control is UL and cUL listed, ensuring safety and compliance with industry standards.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P545NCB-82C

Technical Specifications

• Voltage: 120/240V
• Switching: SPDT
• Time Delay: 120 Seconds
• Compressor: Carlyle

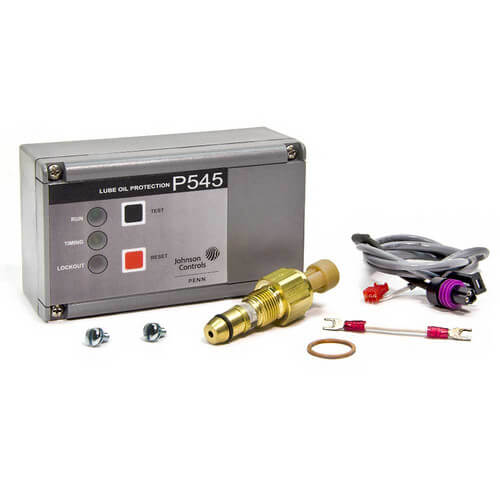

• Wiring Harness: WHA-P400-100
• Country of Origin: MX
• Harmonized Tariff Code: N9032.89.608
• Weight: 2.4 pounds
• Shipping Dimensions: 6.3 x 5.1 x 3.7 inches
