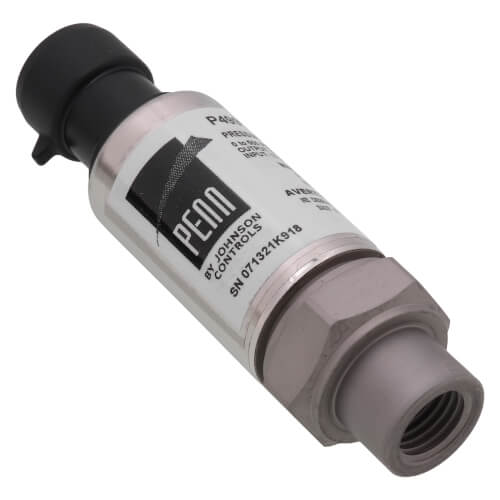

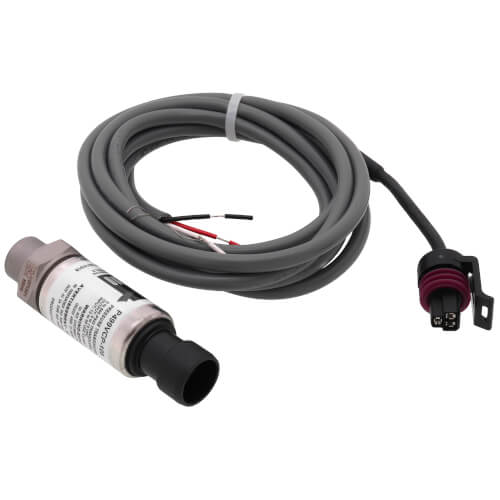

Johnson Controls P499VCP-105K Pressure Transducer Kit 0-500 PSI with Harness

Product Overview

The Johnson Controls P499VCP-105K is a versatile and durable electronic pressure transducer designed for accurate pressure measurement across a wide range of industrial applications. It operates effectively between 0 and 500 PSI, delivering reliable 0 to 10 VDC output.

• Direct-mount, compact, and economically priced.
• Robust stainless steel construction ensures long-lasting performance.
• Digitally compensated for precise measurements across varied temperatures.

Product Highlights

This pressure transducer is well-suited for usage in commercial refrigeration, air conditioning, and other non-corrosive fluid applications. It is specially designed to resist environmental factors like humidity and temperature variations, ensuring consistent performance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P499VCP-105K

Technical Specifications

• Pressure Range: 0-500 psi
• Output Signal: 0 to 10 VDC
• Connection Type: 1/4 inch SAE 45° Flare Internal Thread
• Maximum Operating Temperature: 185 Degrees Fahrenheit
• Minimum Operating Temperature: -40 Degrees Fahrenheit
• Wetted Materials: 17-4PH Stainless Steel
• Accuracy: ±1% of Full Scale
• Power Requirement: 12 to 30V DC
