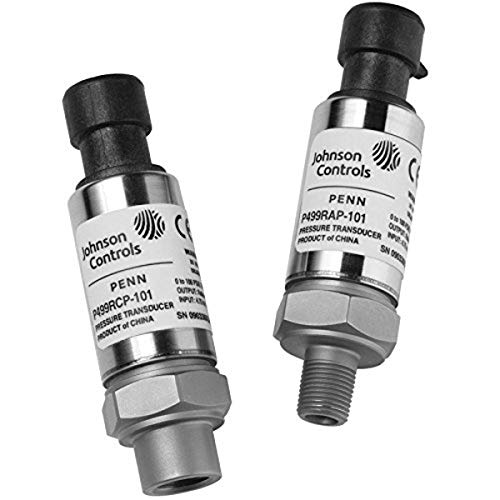

Johnson Controls P499VCP-101C Electronic Pressure Transducer 0-100 PSI 0-10 VDC

Product Description

Johnson Controls presents the P499VCP-101C, an electronic pressure transducer that measures pressures from 0 to 100 PSI and converts this into a 0-10 VDC output. Designed for HVAC and refrigeration, this compact and economical device offers reliable measurements crucial for system performance.

• Direct-mount installation with a 1/4 inch SAE 45° flare internal thread.
• Environmentally protected and rugged stainless steel construction.
• Digitally compensated for high accuracy across varying temperatures.

Product Highlights

The transducer features a stainless steel pressure port mechanically fused with the sensor, eliminating the need for welds or o-rings, ensuring a leak-proof, metal-sealed system. It operates effectively with various media including ammonia, water, and most refrigerants, suitable across a broad range of HVAC and refrigeration applications.

Technical Specifications

• Brand: Johnson Controls
• MPN: P499VCP-101C
• Pressure Range: 0 to 100 PSI
• Output Signal: 0-10 VDC
• Connection Type: 1/4 inch SAE 45° flare internal thread
• Construction: Stainless steel
• Temperature Compensation: Digitally compensated
