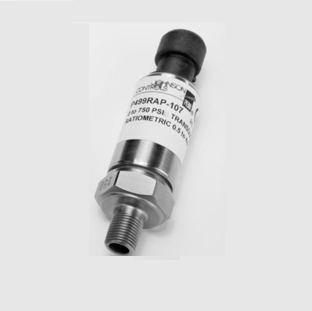

Johnson Controls P499RAP-107K P499 Series Electronic Pressure Transducer 0.5 to 4.5 VDC (2 m wire harness)

Product Description

The Johnson Controls P499RAP-107K is a P499 Series electronic pressure transducer that provides a 0.5 to 4.5 VDC analog output proportional to sensed pressure. It covers a 0 to 750 psi range and uses a 1/8"-27 NPT external thread pressure port machined from 17-4PH stainless steel for an all-metal sealed pressure system. The transducer is digitally compensated with environmentally protected electronics and is intended for commercial refrigeration and air conditioning head pressure control.

• Analog output 0.5 to 4.5 VDC (ratiometric); pressure range 0 to 750 psi; 1% total error band accuracy.
• 1/8"-27 NPT external thread pressure port machined from 17-4PH stainless steel; all-metal sealed design with no exposed O-rings or welds.
• Digitally compensated, environmentally protected electronics; direct-mount design with 2 m wire harness; compatible with most non-corrosive refrigerants including ammonia.

Product Highlights

Compact direct-mount transducer; 0–750 psi range; 0.5–4.5 VDC analog output; 2 m harness.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P499RAP-107K
• Country of Origin: Canada

Technical Specifications

• Brand: Johnson Controls
• Manufacturer Part Number: P499RAP-107K
• Series: P499
• Product Type: Electronic pressure transducer
• Output Voltage: 0.5 to 4.5 VDC (ratiometric)
• Output Signal: Analog 0.5 to 4.5 VDC proportional to pressure
• Pressure Range: 0 to 750 psi
• Pressure Port Thread: 1/8"-27 NPT external thread
• Construction Material: 17-4PH stainless steel (single-piece machined pressure port); stainless steel construction
• Accuracy: 1% total error band
• Electronics: Digitally compensated; environmentally protected
• Mounting Type: Direct-mount
• Harness Length: 2 m wire harness
• Media Compatibility: Most non-corrosive refrigerants; suitable for ammonia
• Typical Applications: Commercial refrigeration and air conditioning; head pressure control
• Country of Origin: US
