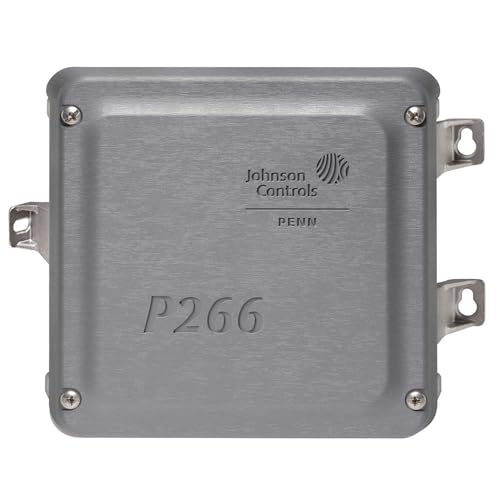

Johnson Controls P266BHA-2K Condenser Fan Speed Control 460/575V with Two Pressure Transducers

Product Description

The Johnson Controls P266BHA-2K Condenser Fan Speed Control with two pressure transducers is designed for single-phase Permanent Split-Capacitor (PSC) motors used in refrigeration and air conditioning condenser fans. It provides enhanced energy efficiency and longer motor life in a durable, weather-resistant package.

• Durable stainless steel remote-mount pressure transducers
• Wide and adjustable pressure throttling range
• Optional auxiliary fan control

Product Highlights

Easy to install and operate, the P266BHA-2K supports 208 to 575 VAC applications and comes with optional high-voltage triacs for improved efficiency at low speeds.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P266BHA-2K

Technical Specifications

• Control Volts: 460/575
• Triac Output Amps: 4
• Input Volts AC @ 60/50 Hz: 460/575
• Includes: (2) P266SNR-1C and (2) 6.5 feet Cables
• Ambient Temp. Range (C): -40 to 60 Degrees C
• Hard Start Timing (Sec.): 2
• Function: Fan Speed Control
• Pressure: Senser Dependent. Refer to P266SNR-1C or P266SNR-2C
