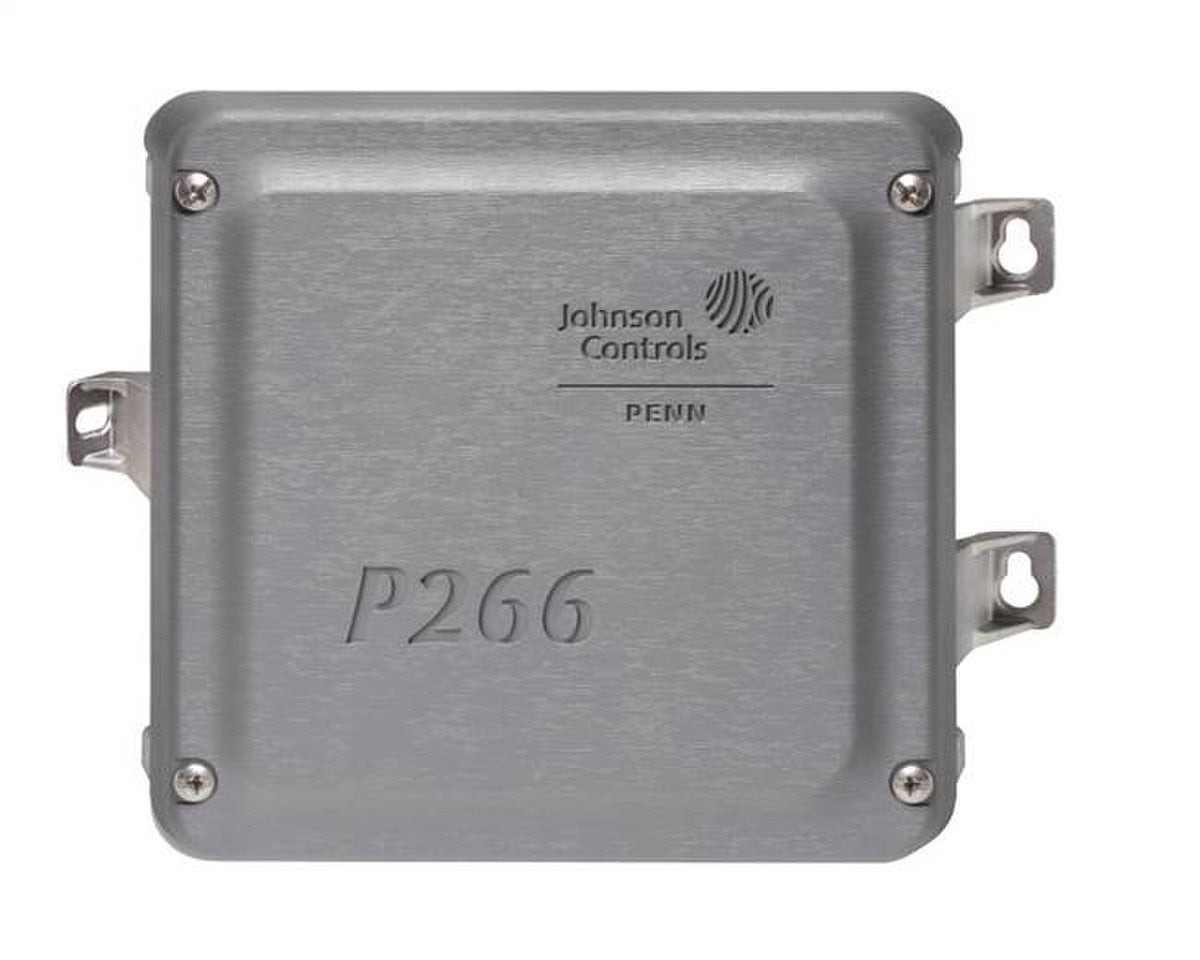

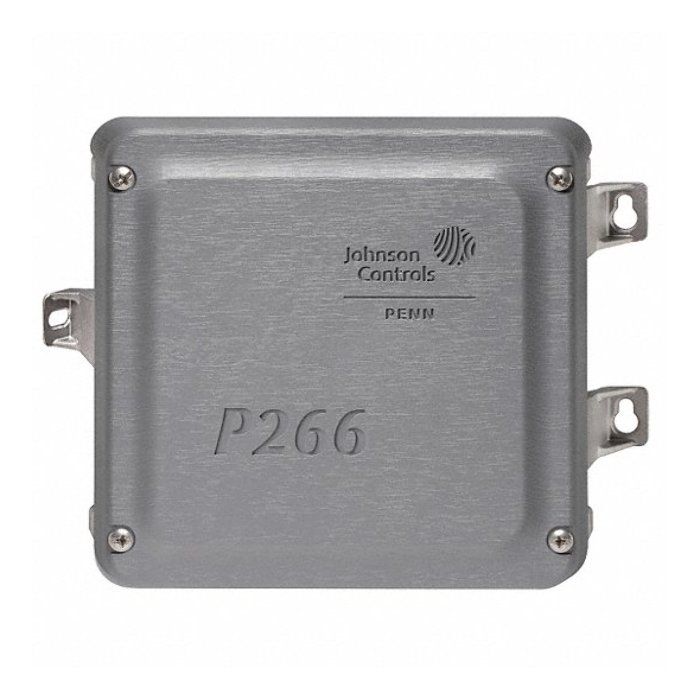

Johnson Controls P266BHA-100C Fan Speed Control 460/575V 4 Amp

Product Description

The JOHNSON CONTROLS P266BHA-100C is a cost-effective, weather-resistant, durable motor speed control designed for single-phase, Permanent Split-Capacitor (PSC) motors. It is suitable for refrigeration and air conditioning condenser fan applications, offering greater energy efficiency and longer motor life. It operates within the 460 to 575 VAC range.

• Wide, Adjustable Pressure Throttling Range
• Optional Auxiliary Fan Control
• NEMA 3R Enclosure With Integral Metal Heat-Sink And Stand-Off Mounting Feet

Product Highlights

Cost-effective, weather-resistant, and durable, this fan speed control enhances energy efficiency and extends motor life in condenser fan applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P266BHA-100C
• Country of Origin: Mexico

Technical Specifications

• Voltage [Features]: 460/575v
• High VAC Triacs [Features]: 2
• Max Output Amperes [Features]: 4
• Item [Specifications]: Condenser Fan Speed Control
• Controls [Specifications]: Single Stage Condenser Fans
• Requires [Specifications]: P266SNR-1C or P266SNR-2C
• Control Volts [Specifications]: 460/575
• Triac Output Amps [Specifications]: 4
• Ambient Temp. Range (C) [Specifications]: -40 to 60
• Hard Start Timing (Sec.) [Specifications]: 2
• Input Volts AC @ 60/50 Hz [Specifications]: 460/575
• Manufacturer: Johnson Controls
• Manufacturer Part Number: P266BHA-100C
• Description: Fan Speed Control; Fan Speed
• Product Type: Fan Speed Control
• Minimum Control Pressure Setpoint: 0 psi
• Maximum Control Pressure Setpoint: 754 psi
• Minimum Temperature Setting: -40 °F
• Maximum Temperature Setting: 140 °F
• Input Voltage: 460/575V AC
• Frequency: 50/60 Hz
• Output Voltage: 460/575V AC
• Output Current: 4 A
• Number of Inputs: Pressure Sensor (1)
• Number of High VAC TRIACs: 1
• Number of Auxiliary Contacts: 3
• Number of Pressure Sensors Included: 3
• Contact Form: SPST
• Switch Type: Dual Slide
• Body Material: Aluminum
• Input Sensor Type: Pressure Sensor
• Electrical Connection Type: Quick Connect Terminals
• IP Rating: IP54
• NEMA Rating: 3R
• Brand: JOHNSON CONTROLS
• Series: P266
• Capillary Length: 5 ft
• Overall Depth: 2-3/4 in
• Overall Height: 6-1/4 in
• Overall Width: 7 in
• Standards: C-Tick Compliant (N1813); C-UL-US; CE Listed; FCC; ICES-003
• Percentage of Supply Voltage to Start: 40 %
• UNSPSC: 41112411
• Ambient Temperature Range (C): -40 to 60
