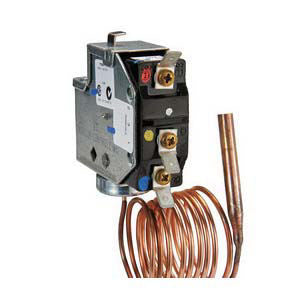

Johnson Controls P20DB-1C Air Conditioning Limit Control w/ Manual Reset (100-425 PSIG)

Product Description

The Johnson Controls P20DB-1C is an air conditioning limit control designed for residential and commercial units. This model features a manual reset and operates within a pressure range of one hundred to four hundred twenty-five PSIG. The switch action is open-on-rise, allowing for reliable performance in pressure management.

• Max Pressure: Four hundred fifty PSIG
• Compact size for easy installation
• Quick connect electrical connections

Product Highlights

This pressure control is suitable for various air conditioning applications and may be used with non-corrosive refrigerants. The manual reset feature enhances system safety and reliability.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Product Type: Air Conditioning Controls

Technical Specifications

• Model Number: P20DB-1C
• Pressure Range: 100-425 PSIG
• Switch Action: SPST, Opens On High Pressure
• Electrical Rating: 120/277 VAC
• Temperature Rating: 140 degrees F
• Connection Type: 1/4 Inch Sweat
• Capillary Length: 36 inches
• Enclosure Type: NEMA 1
