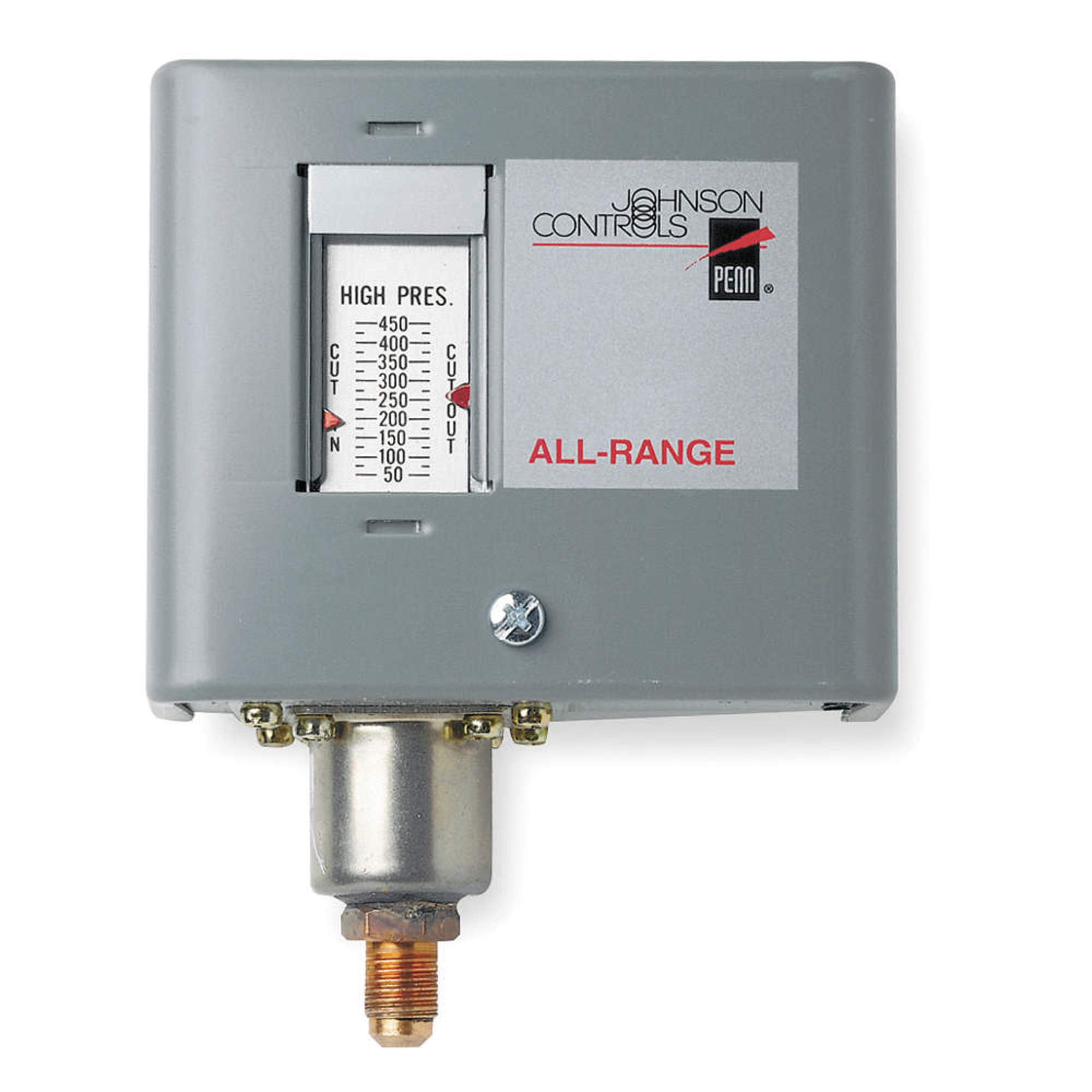

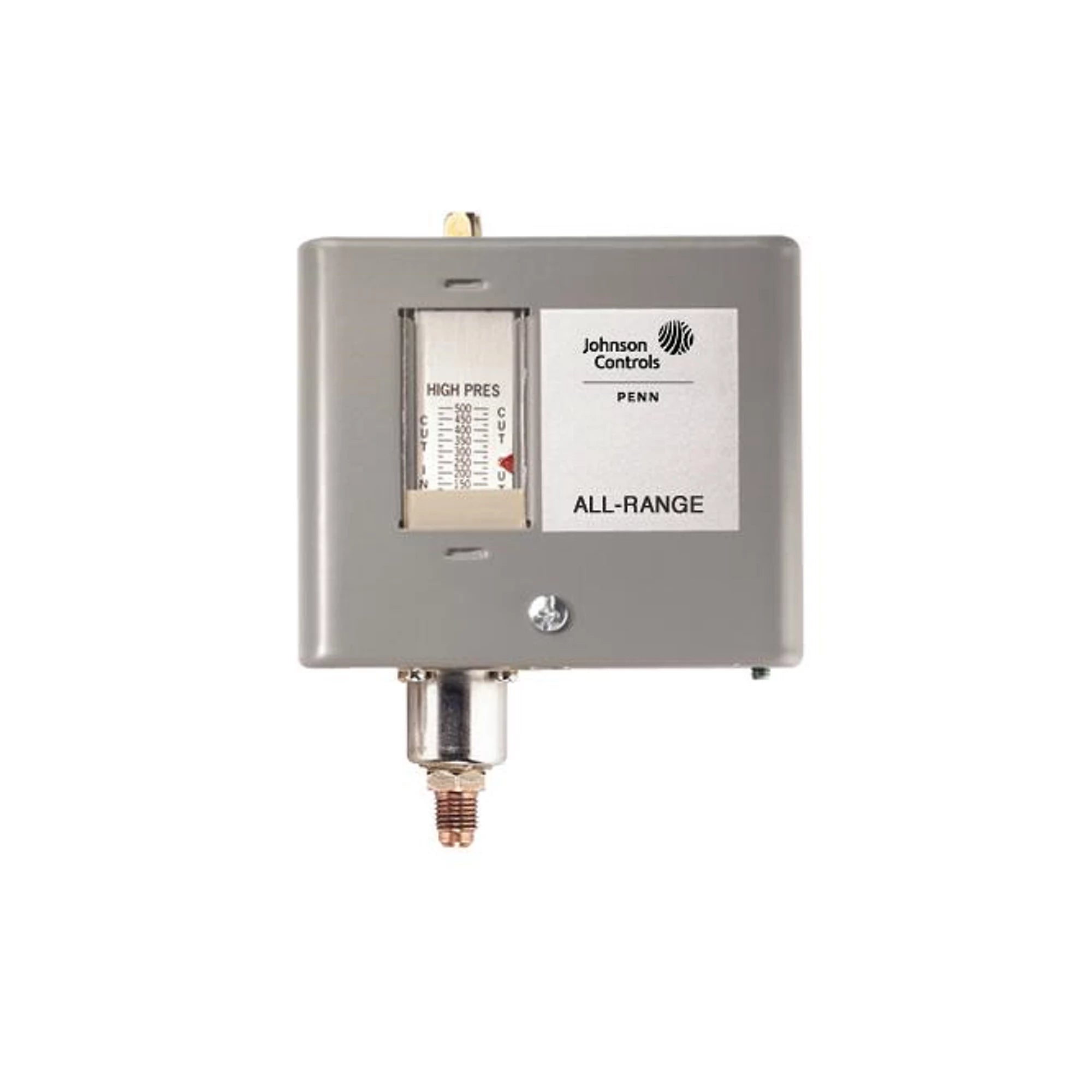

Johnson Controls P170KA-1C Pressure Control, 50 to 500 psi

Product Description

The Johnson Controls P170KA-1C is a pressure control designed for low pressure applications in commercial refrigeration and air conditioning systems. It is primarily used for low pressure cut-out control, pump-down control, and capacity control. Compatible with most common refrigerants, this control can also be used in other non-corrosive fluid applications. Ammonia-compatible models are available, and controls come in various electrical ratings and switch configurations.

• All-steel case and cover provides rugged protection for internal components.
• "Sight-Set" calibrated pressure adjustment displays a visible pressure scale, adjustable without removing the cover (on NEMA 1 enclosure models).
• MICRO-SET differential option allows for precise control on critical low pressure applications.

Product Highlights

Designed for low pressure cut-out, pump-down, and capacity control in refrigeration and AC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P170KA-1C
• Country of Origin: Mexico

Technical Specifications

• Model Number: P170KA-1C
• Manufacturer: Johnson Controls Inc
• Frequency: 50/60 Hz
• Phase: Single
• Input Voltage: 120/240 VAC
• Product Type: Single Pressure Control
• Pressure Range: 50 to 500 psi
• Country of Origin: Mexico
• Application: Industrial, Commercial
• Series: P170
• Specific Application: High Limit
• Pressure Range Adjustability: Adjustable
• Pressure Range Maximum: 500 psi
• Pressure Range Minimum: 50 psi
• Reset Type: Manual Reset
• Contact Form: SPST
• Switch Action: Open on Rise
• Minimum Operating Temperature: 50 °F
• Body Material: Steel
• Element Type: Bellows
• Mounting Orientation: Flat; Horizontal; Vertical
• Electrical Connection Type: Hardwired
• Input Sensor Type: Pressure Sensor
• Pressure Type: Differential
• Includes: Mounting Bracket
• Standards: UL Listed
• Pressure Connection Gender: Male
• Pressure Connection Size: 1/4 in
• Pressure Connection Type: Flare
• Process Connection: 1/4 in Male Flare
• Mounting Hole Diameter: 1/4 in; 3/8 in
• NEMA Rating: 1
• Pressure Setting: High
