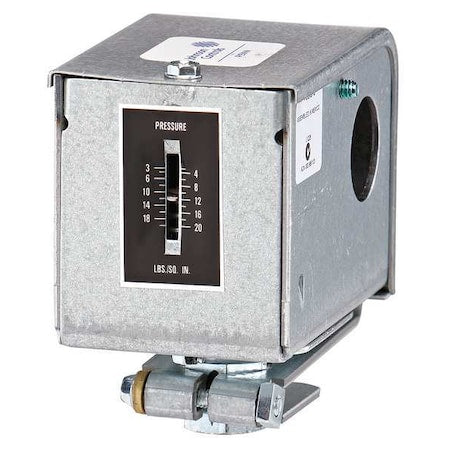

Johnson Controls p10bj-1c penn series p10 low pressure control 16 amp 3-20 psi 1/8 inches internal npsf

Product Description

The JOHNSON CONTROLS P10BJ-1C Penn Series P10 Low Pressure Control is an ELECTRONIC_COMPONENT designed to open or close electrical circuits based on changes in operating air pressure. This 1-stage SPDT control operates within a 3-20 psi range and connects via a 1/8" Internal NPSF. It is suitable for pneumatic systems and air compressors.

• Easily accessible wiring terminals
• Visible calibrated adjustable range scale
• Snap-acting switch in a dust protected enclosure

Product Highlights

This low pressure control features a durable steel case, Buna N diaphragm, and a 120-277V AC voltage rating, ensuring reliable performance in various applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P10BJ-1C
• Country of Origin: Mexico

Technical Specifications

• MPN: P10BJ-1C
• Manufacturer: Johnson Controls Inc
• Series: Penn P10
• Control Type: Low Pressure Control
• Number of Stages: 1
• Contact Type: SPDT
• Connection Size: 1/8" Internal NPSF
• Product Type: ELECTRONIC_COMPONENT
• Max Pressure: 20 PSIG
• Min Pressure: 3 PSIG
• Voltage: 120-277V AC
• Certifications: UL / CSA
• Max Ambient Temperature: 140 Degrees F
• Differential Pressure: 2 psi
• Open Setting: 10
• Enclosure Rating: NEMA 1
• Amperage: 16 AMP
• Mounting Type: BRKT
• Adjustment Method: Screwdriver
• Air Connection Gender: Female
• Air Connection Type: NPSF
• Applications: Air Compressors, Electric Heating Systems, Interlock Functions, Pneumatic Systems, Pumps
• Case Material: Steel
• Conduit Size: 1/8"
• Cover Material: Steel
• Diaphragm Material: Buna N
• Electrical Connections: Screw Terminal
• Full Load Amps @ 120V: 16A
• Full Load Amps @ 240V: 8A
• Locked Rotor Amps @ 120V: 96A
• Locked Rotor Amps @ 240V: 42A
• Max Operating Temperature: 140°F
• Min Operating Temperature: 32°F
• Number of Functions: Single Function
• Number of Switches: 1
• Pilot Duty @ 120V AC: 125 VA
• Pilot Duty @ 240V AC: 125 VA
• Min Signal Pressure: 3 psi
• Max Signal Pressure: 20 psi
