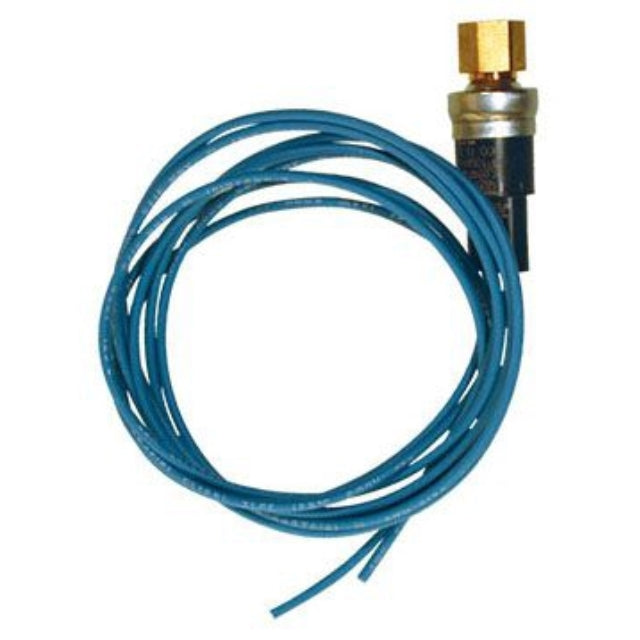

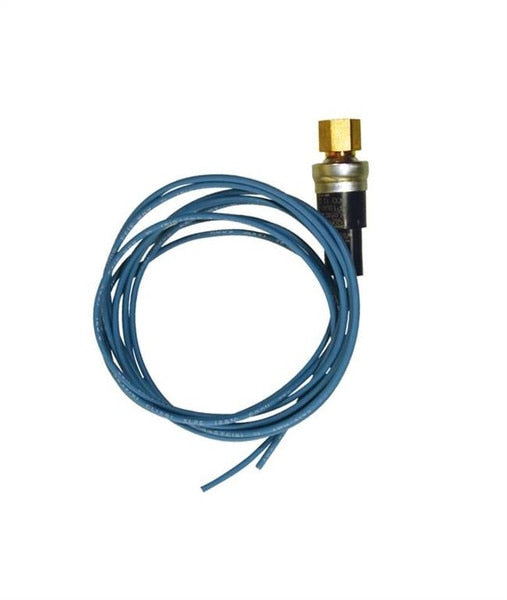

Johnson Controls P100AP-361C Encapsulated Pressure Switch 50 to 90 psi

Product Description

The JOHNSON CONTROLS P100AP-361C is an encapsulated pressure switch with a range of 50 to 90 psi. This SPST switch features open low construction and automatic reset, and includes a 1/4" female flare with depressor. It is designed for use with non-corrosive refrigerants.

• Compact size and lightweight construction allows for direct mounting to refrigeration piping.
• Tamper-proof, factory-calibrated pressure setpoints provide accurate, repeatable pressure control.
• Automatic reset control type.

Product Highlights

Encapsulated pressure switch with automatic reset and 1/4" female flare connection for refrigeration and air conditioning systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: P100AP-361C
• Country of Origin: United States

Technical Specifications

• Type: Non-Adjustable, Encapsulated, Direct Mount
• Operator Type: Snap-Acting Diaphragm
• Operating Pressure Rating: 170 PSIG (Open), 250 PSIG (Close)
• Contact Configuration: SPST
• Contact Rating: 6 Amp (Full Load)/36 Amp (Locked Rotor)/375 Volt Amp (Pilot Duty) at 120/240 Volt AC
• Connection Type: 1/4 Inch Female Flare
• Application: Low Limit, High Limit, Fan Cycling Control, Ice Machine, Food Service Equipment, Commercial Refrigeration and Air Conditioning System
• Approval: UL (Canada and US)
• Switch Action: Open on Pressure Drop
• Control Type: Automatic Reset
• Burst Pressure Rating: 3500 PSI
• Operating Ambient Temperature: -20 to 150 Deg F
• Refrigerant Temperature Rating: -65 to 275 Deg F
• Dielectric Strength: 750 Volt RMS (Across Open Contact), 1550 Volt RMS (Terminal to Fitting)
• Ambient Humidity: 0 to 95 Percent Non-Condensing
• Includes: Schrader Depressor
• Used On: Non-Corrosive Refrigerant
• Brand: Johnson Controls
• Voltage: 120/240
• Model: P100AP-361C
• MPN: P100AP-361C
• Opens: Low
• PSI: 50 to 90
• Reset: Automatic
