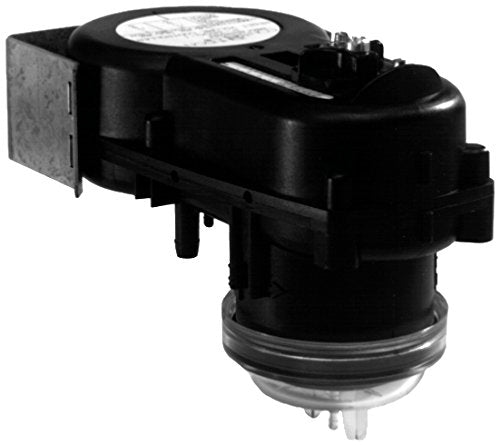

Johnson Controls P-3800-1 Reset Volume Controller 13 to 25 psi

Product Description

The Johnson Controls P-3800-1 is a Reset Volume Controller that regulates air flow in Variable Air Volume (VAV) boxes. It adjusts output volume according to a reset signal from a thermostat or a master controller. This device is essential for maintaining air balance in HVAC systems.

• Provides controllable flow down to 0.01 inches WG velocity pressure.
• Reset range adjustable from 0.15 to 1.6 inches WG.
• Isolated diaphragm design accepts any sensing line.

Product Highlights

Featuring adjustable settings, the P-3800-1 delivers accurate air volume control and energy efficiency.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P-3800-1
• Product Type: Electronic Component

Technical Specifications

• Control Range: 13 to 25 psi
• Pressure Measurement: 0.01 inches WG (2.5 Pa)
• Dimensions: Height - four and forty-five sixty-fourths inches, Width - three and one-half inches, Depth - six and thirteen thirty-seconds inches
• Material: Noryl
• Operating Temperature Limit: 60 to 85 degrees Fahrenheit
• Connection Ports: Barbed fittings for three-eighths inches outer diameter polytubing
