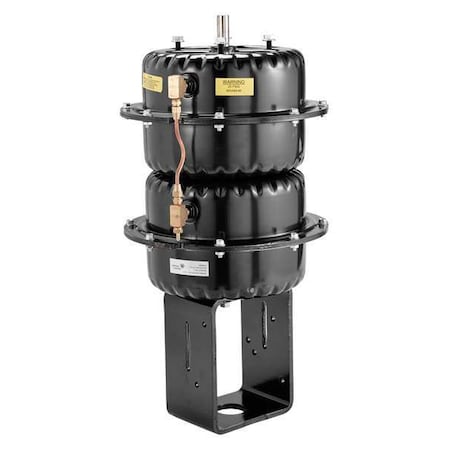

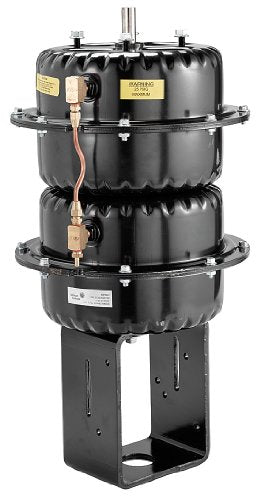

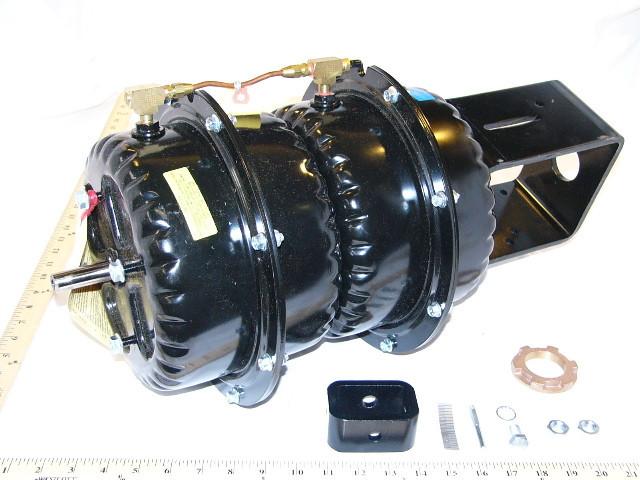

Johnson Controls MP867C001G Pneumatic Valve Actuator with Mounting Kit
Johnson Controls MP867C001G Pneumatic Valve Actuator with Mounting Kit
Johnson Controls MP867C001G Pneumatic Valve Actuator with Mounting Kit

Johnson Controls MP867C001G Pneumatic Valve Actuator with Mounting Kit

Brand: JOHNSON CONTROLS
SKU: MP867C001G
Availability: Out Of Stock
$1,997.16
$1,997.16
LTL Delivery

This product weighs 54 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Johnson Controls MP867C001G Pneumatic Valve Actuator is designed for reliable operation and precise control in HVAC systems. This model is compatible with VG7000 and VG2000 Globe Valves from Johnson Controls, ensuring a perfect fit and optimal performance.

  • Efficient operation with a pressure range of 0 to 25 psi.
  • Robust 1 1/2 inch stroke length.
  • Includes essential linkage for easy installation.

Product Highlights

This actuator features a nominal spring range of 3 to 7 psi, making it suitable for a variety of industrial applications. It is crafted to provide consistent performance and durability.

Product Information

Standard Information

  • Brand: Johnson Controls
  • Model: MP867C001G

Technical Specifications

  • Width: 11 13/16 inches
  • Height: 23 inches
  • Length: 11 13/16 inches
  • Stroke: 1 1/2 inches
  • Max Air Pressure: 25 psi
  • Operating PSI Range: 0 to 25
  • Nominal Spring Range: 3 to 7 psi
