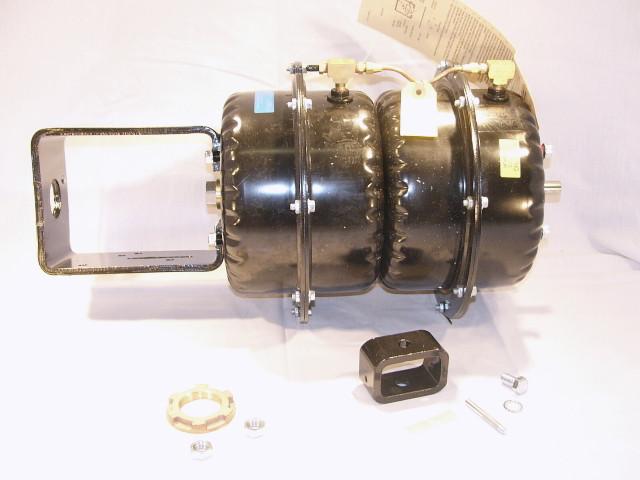

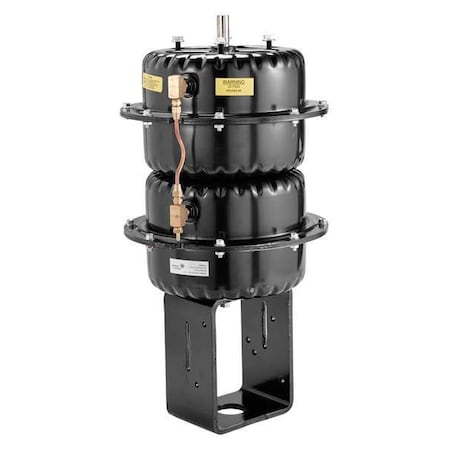

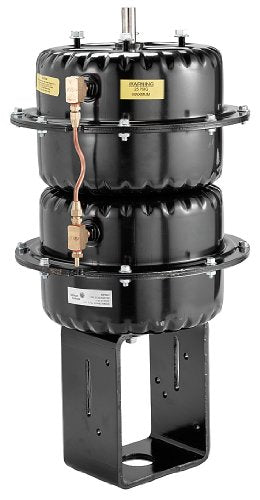

Johnson Controls MP865E001G Pneumatic Valve Actuator 1-1/8 Inch Stroke 9-13 PSI

Product Description

The Johnson Controls MP865E001G is a high-performance pneumatic valve actuator designed to regulate flow in HVAC systems. It's engineered for precise control of water, steam, and chilled-water valves, ensuring efficient system operation.

• Robust, corrosion-resistant housing for durability in varied environments.
• Visual position indicator for real-time monitoring of valve position.
• Compatible with VG7000 and VG2000 Globe Valves from Johnson Controls.

Product Highlights

This actuator is built to manage pressures ranging from 9 to 13 PSI and can accommodate a maximum air pressure of 25 PSI. Its 1-1/8 inch stroke offers a reliable and effective area during operation, suited both for small-scale and larger HVAC setups.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: MP865E001G

Technical Specifications

• Stroke: 1-1/8 inch
• Operational PSI Range: 0 to 25
• Nominal Spring Range: 9 to 13 PSI
• Length: 11 13/16 inches
• Width: 11 13/16 inches
• Height: 23 inches
• Includes: Linkage
• For Use With: VG7000 and VG2000 Globe Valves
