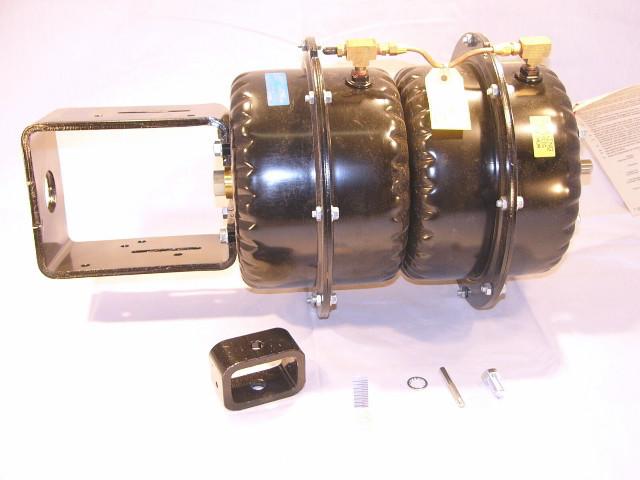

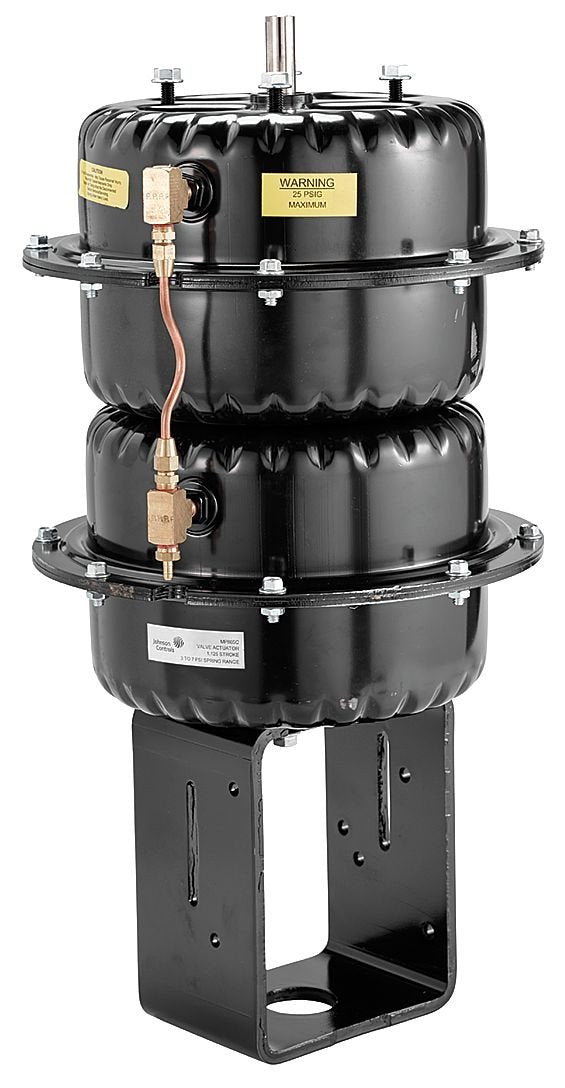

Johnson Controls MP865C001G Pneumatic Valve Actuator 1 1/8 Stroke with Mounting Kit

Product Description

The Johnson Controls MP865C001G pneumatic valve actuator is expertly engineered to position valves accurately in HVAC systems, responding to pneumatic signals from controllers. This model is equipped with a mounting kit for easy installation.

• Universal application: Suitable for both hot and chilled water, and steam-control valves.
• Selectable action: Field-reversible for spring-return-up or down action on normally open valves.
• Durable design: Features a corrosion-resistant housing with a visual position indicator.

Product Highlights

Designed for reliability, the MP865C001G includes a synthetic rubber diaphragm within a robust housing, safeguarding the internal components from dirt and ensuring longevity. Ideal for sequential operation, this model can be paired with a pneumatic or electric valve positioner, sold separately.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP865C001G

Technical Specifications

• Stroke: 1 1/8 inches
• Operating PSI Range: 0 to 25
• Max. Air Pressure: 25 psi
• Effective Area: 100 square inches
• Spring Range: 3 to 7 psig
• Dimensions: Height: 23 inches, Width: 11 13/16 inches, Length: 11 13/16 inches
• For Use With: VG7000 and VG2000 Globe Valves
• Includes: Linkage
