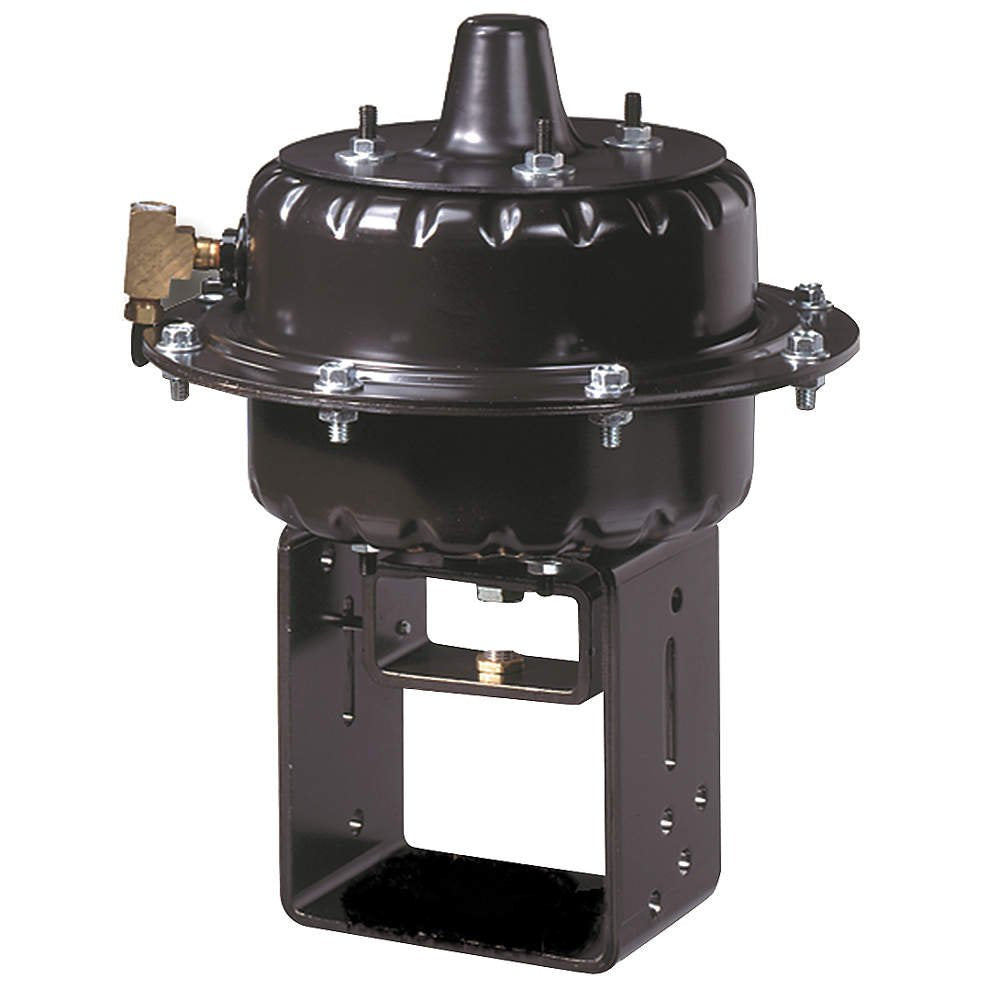

Johnson Controls MP843D001F MP8000 Series Pneumatic Valve Actuator with Mounting Kit, Spring Return Up, 50 Square Inch Effective Area, 3/4 Stroke, 4 to 8 psig

Product Description

The Johnson Controls MP843D001F MP8000 Series Pneumatic Valve Actuator is designed for precise control in hot-water, chilled-water, and steam applications. It includes a mounting kit and features a spring return up action. With a 50 square inch effective area and a 3/4 inch stroke, this actuator operates with a pressure range of 4 to 8 psig.

• Universal application for hot-water, chilled-water, and steam
• Field-reversible action for selectable spring-return
• Corrosion-resistant housing ensures durability

Product Highlights

The Johnson Controls MP843D001F offers reliable control for various water and steam valve applications. It is built with strong materials to resist corrosion and damage, ensuring long-lasting performance. The actuator also features a position indicator for easy visual inspection.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP843D001F

Technical Specifications

• Effective Area: 50 square inches
• Stroke: 3/4 inch
• Operating Pressure Range: 4 to 8 psig
• Maximum Air Pressure: 25 psi
• Length: 11 13/16 inches
• Width: 11 13/16 inches
• Material: Rubber
• Exterior Finish: Rubber
