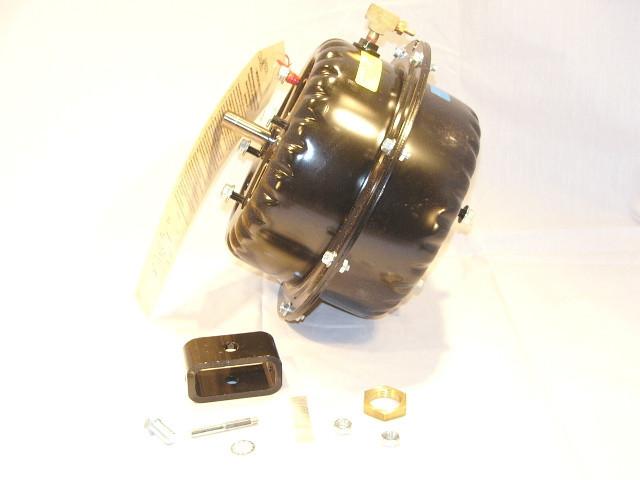

Johnson Controls MP843C001F Pneumatic Valve Actuator with Spring Return Up and Mounting Kit

Product Description

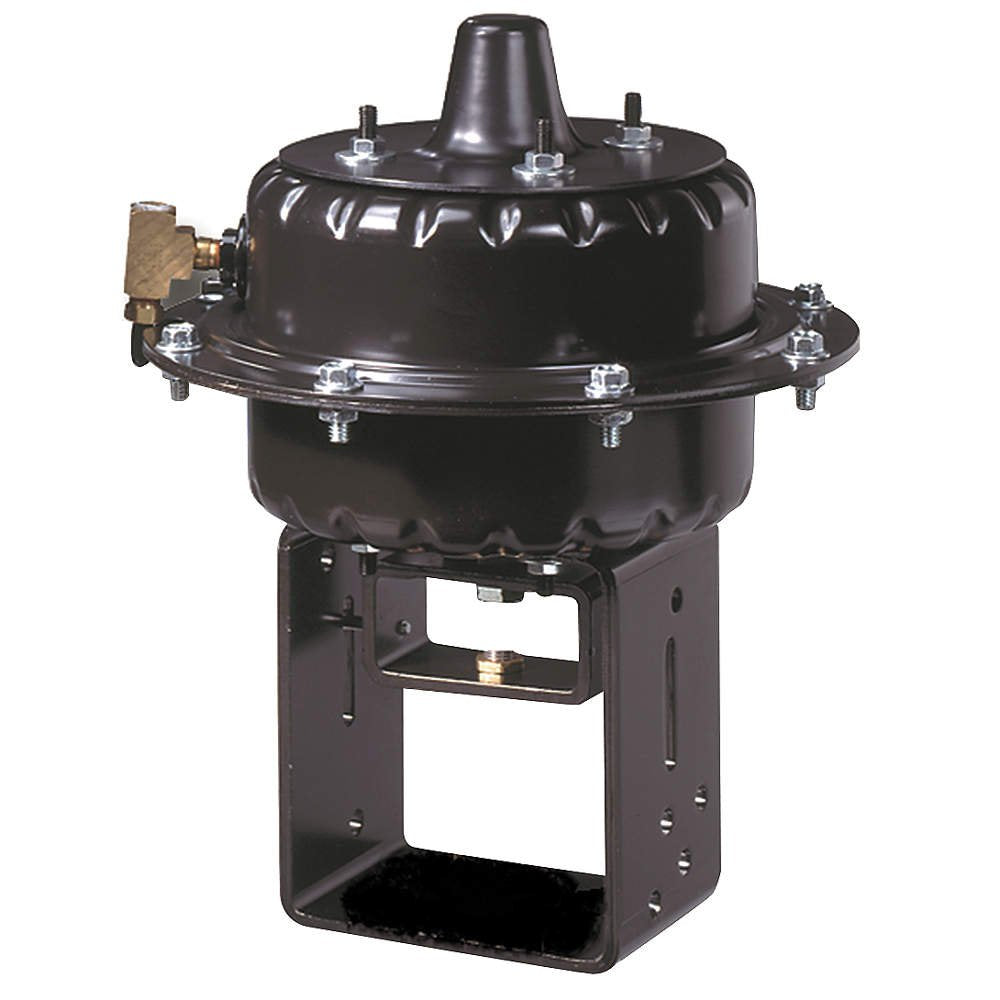

The Johnson Controls MP843C001F Pneumatic Valve Actuator is engineered for precise valve positioning in HVAC systems, accommodating hot-water, chilled-water, and steam-control valves. This device responds to pneumatic signals from controllers and is capable of using a pneumatic or electric valve positioner for additional applications that require sequential operation or increased positioning power.

• Effective in both hot and chilled water applications
• Configurable for spring-return-up or spring-return-down positions
• Durable, corrosion-resistant housing with visual position indicators

Product Highlights

Designed for reliability, the MP843C001F features a robust synthetic rubber diaphragm housed within a corrosion-resistant body, ensuring extended operational lifespan and protection against environmental factors. The actuator's design allows inherent flexibility with field-reversible action and includes a position indicator for easy monitoring of valve status.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP843C001F

Technical Specifications

• Effective area: 50 square inches
• Stroke length: three fourths of an inch
• Pressure range: 3 to 7 psig
• Dimensions: 11 13/16 inches by 11 13/16 inches
• Compatibility: VG7000 and VG2000 Globe Valves
