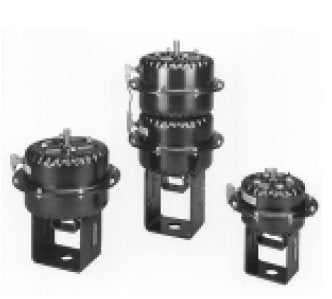

Johnson Controls MP823E001A MP8000 Series Pneumatic Valve Actuator with Mounting Kit MP8000-6702, Spring Return Up, 25 Square Inch Effective Area, 3/4 Stroke, 9 to 13 psig

Product Description

The Johnson Controls MP823E001A is a pneumatic valve actuator designed for managing hot-water, chilled-water, and steam-control valves. This model operates with a pneumatic signal and features a durable design, ensuring it functions effectively in varied conditions.

• Universal application for hot water, chilled water, and steam systems
• Field-reversible action for spring-return up or spring-return down
• Corrosion-resistant housing for extended lifespan

Product Highlights

This actuator integrates a robust synthetic rubber diaphragm that maintains a consistent effective area throughout its full stroke, making it reliable for precision control. It is suitable for HVAC systems where precise valve positioning is crucial.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model Number: MP823E001A
• Effective Area: 25 square inches
• Stroke: 3/4 inch
• Spring Range: 9 to 13 psig
• Includes: Mounting kit

Technical Specifications

• Air Connection: 1/4 OD barbed fitting
• Max Control Pressure: 25 psi
• Spring Action: Return stem up
