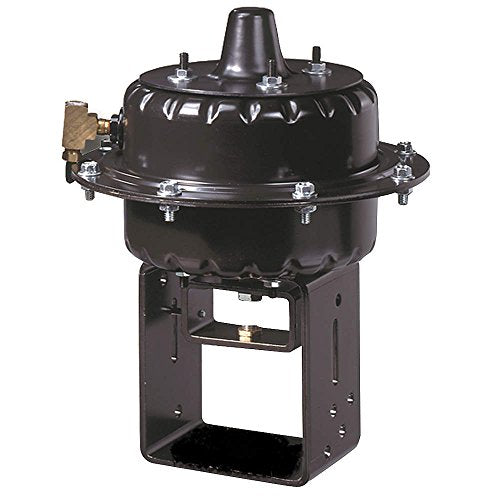

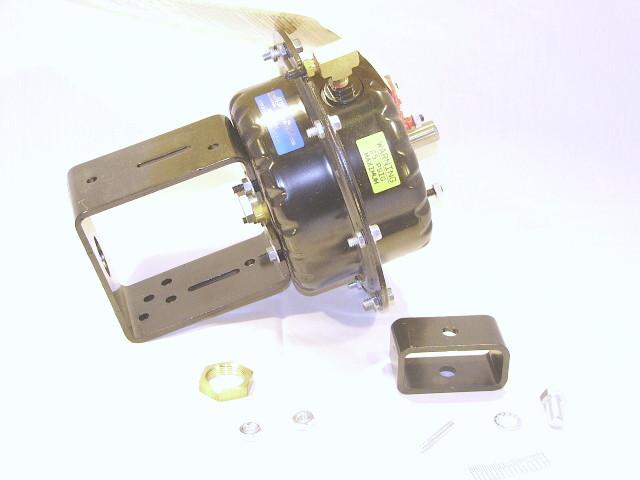

Johnson Controls MP823D001E Pneumatic Valve Actuator 4-8 psi 3/4 Stroke with Mounting Kit

Product Description

The Johnson Controls MP823D001E Pneumatic Valve Actuator effectively manages the positioning of valves in HVAC systems, responding to pneumatic signals from controllers for precise operation.

• Applicable for hot-water, chilled-water, and steam valve control.
• Configurable for either spring-return-up or spring-return-down positions.
• Incorporates a corrosion-resistant housing and a position indicator for valve stem visibility.

Product Highlights

This actuator's universal design and reversible action make it suitable for a wide range of applications, ensuring reliable performance in diverse operational conditions.

Product Information

Technical Specifications

• Stroke Length: 3/4 inch
• Pressure Range: 4 to 8 psi
• Maximum Air Pressure: 25 psi
• Dimensions: 9 7/32 inches x 9 7/32 inches x 11 inches
• Compatibility: Compatible with VG7000 and VG2000 Globe Valves
• Included Components: Linkage
• Material: Corrosion-resistant synthetic rubber and metal housing
