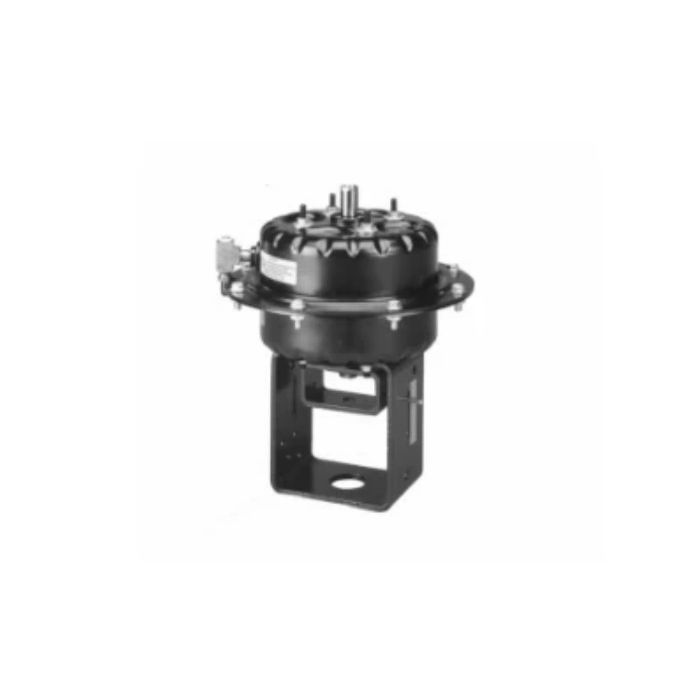

Johnson Controls MP823D001 Pneumatic Valve Actuator Spring Return

Product Description

The Johnson Controls MP823D001 is a pneumatic valve actuator designed for efficient control in HVAC systems. This spring return actuator features a barbed fitting suitable for 1/4 inch O.D. polytubing air connection. It operates in reverse acting mode and is normally open, with a stroke length of three-quarters of an inch. The actuator can function under a pressure range of four to eight psig.

• Universal application design allows use in hot water, chilled water, and steam.
• Field reversible action enables selectable spring-return-up or spring-return-down functionality.
• Strong, corrosion-resistant housing ensures durability and a long product life.

Product Highlights

The MP823D001 offers flexibility and reliability in valve operations.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: MP823D001

Technical Specifications

• Housing: Die-formed carbon steel, coated with corrosion-resistant finish
• Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Stroke Length: 3/4 inches
• Pressure Range: 4 to 8 psig
