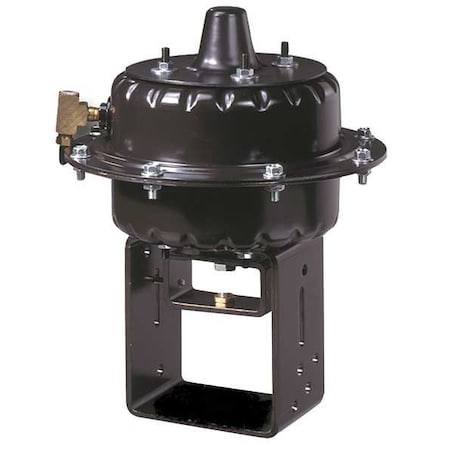

Johnson Controls MP823C001E Pneumatic Valve Actuator Spring Return Up 3/4 Inch Stroke

Product Description

The Johnson Controls MP823C001E pneumatic valve actuator is engineered for precise valve positioning in HVAC systems, using a pneumatic signal from controllers. This actuator is suitable for regulating hot-water, chilled-water, and steam valves.

• Adaptable for both hot and chilled water systems as well as steam control.
• Field-reversible feature for versatile spring-return positioning in normal open valves.
• Robust, corrosion-resistant construction ensures longevity in industrial environments.

Product Highlights

The MP823C001E features a molded synthetic rubber diaphragm within a durable housing, providing excellent protection and consistent performance across its entire range of motion. The included position indicator allows for easy visual checks of valve status.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: MP823C001E

Technical Specifications

• Stroke: 3/4 inch
• Spring Range: 3 to 7 psi
• Max Air Pressure: 25 psi
• Effective Area: 25 square inches
• Dimensions: 9 7/32 inches x 11 inches
• Compatibility: VG7000 and VG2000 Globe Valves
