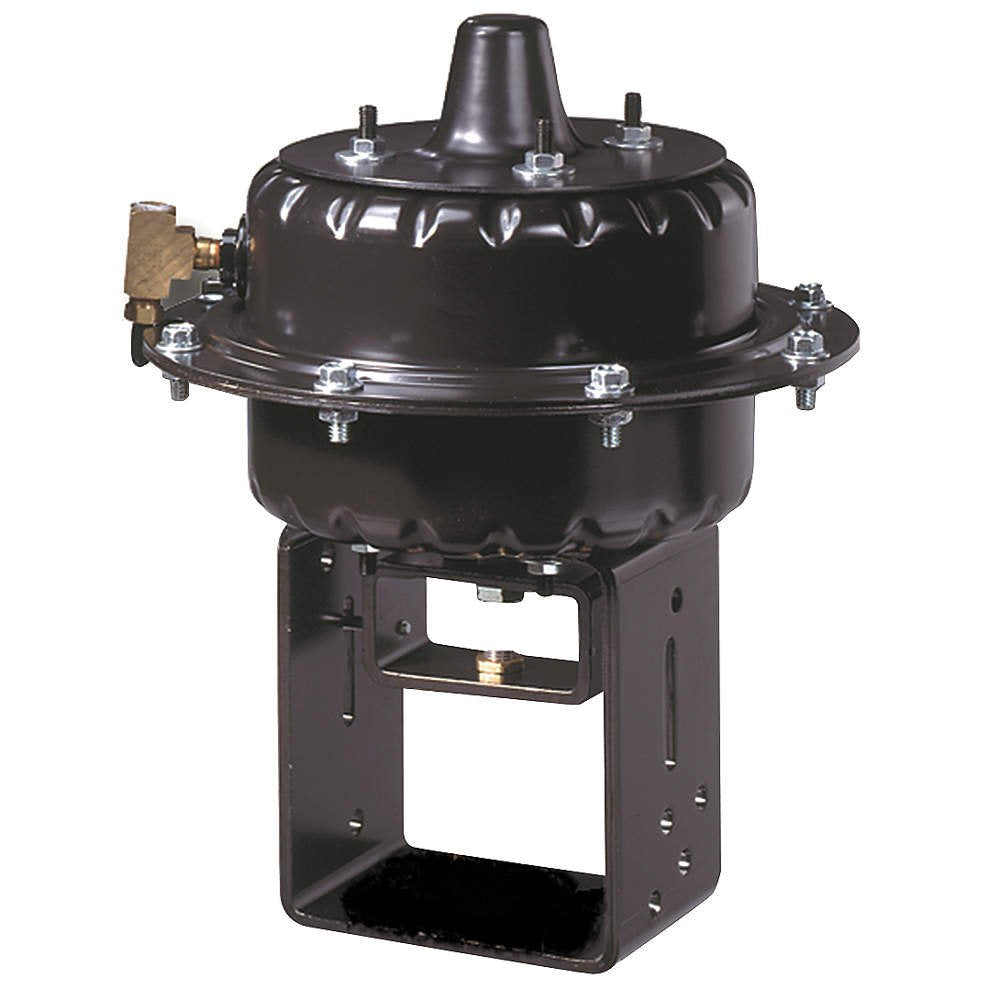

Johnson Controls MP823C001 MP8000 Series Pneumatic Valve Actuator Without Mounting Kit 25 Square Inch Area 3/4 Inch Stroke 3 to 7 psig

Product Description

The Johnson Controls MP823C001 pneumatic valve actuator from the MP8000 Series effectively manages valve operations without a mounting kit. It is engineered to accurately position valves using a pneumatic signal from controllers.

• Spring return-up function with a 25 square inch effective area.
• Adjustable 3/4 inch stroke for precision control.
• Supports 3 to 7 psig operating range, suitable for various applications.

Product Highlights

This actuator is ideal for regulating flow in both hot-water and steam-control valves. Its durable, corrosion-resistant housing safeguards internal components, while the integrated position indicator offers clear visual feedback on valve positioning.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP823C001

Technical Specifications

• Stroke: 3/4 inch
• Effective Area: 25 square inches
• Pressure Range: 3 to 7 psig
• Dimensions: 10 x 10 x 10 inches; Weight: 4 Pounds
