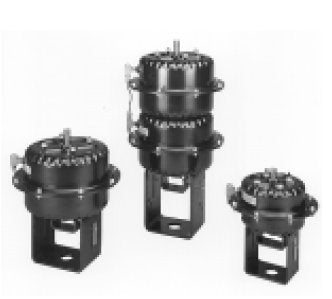

Johnson Controls MP822D001A MP8000 Series Pneumatic Valve Actuator with Mounting Kit, Spring Return Up, 25 Square Inch Effective Area, 1/2 inch Stroke, 4 to 8 psig

Product Description

The Johnson Controls MP822D001A is an advanced MP8000 Series Pneumatic Valve Actuator equipped with a mounting kit. It offers reliable functionality with a 25-square-inch effective area, featuring a spring return up mechanism and a 1/2 inch stroke. This durable actuator operates with a pressure range of 4 to 8 psig, suitable for various HVAC applications.

• Designed for hot-water, chilled-water, and steam-control valves
• Corrosion-resistant housing with a molded rubber diaphragm
• Optional pneumatic or electric valve positioners available

Product Highlights

Johnson Controls MP822D001A ensures accurate valve positioning, ideal for both commercial and industrial HVAC systems. Its robust design enables effective protection against environmental damage while maintaining consistent operation under various conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP822D001A

Technical Specifications

• Effective Area: 25 square inches
• Stroke: 1/2 inch
• Operating Pressure: 4 to 8 psig
• Mounting Kit Included: Yes
• Housing: Corrosion-resistant
• Diaphragm: Molded rubber
