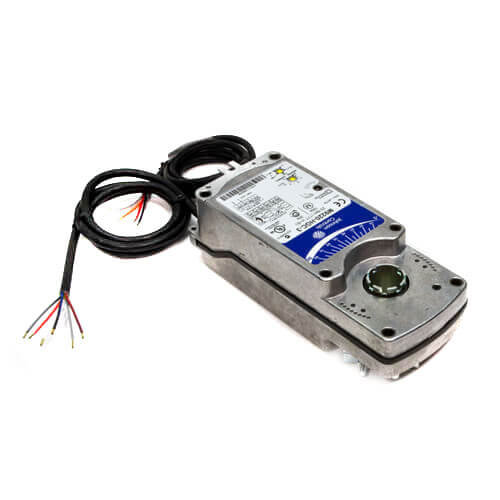

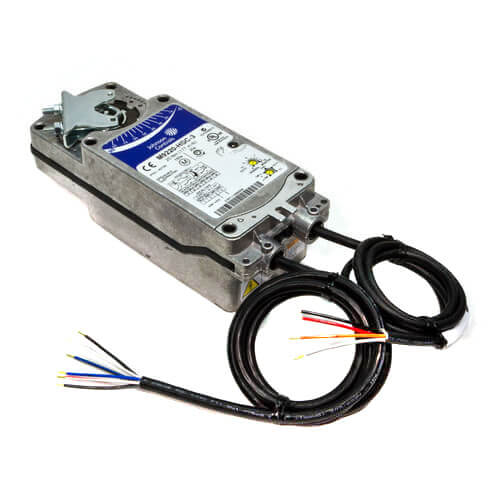

Johnson Controls M9220-HGC-3 Direct Coupled 177 lb-in Spring Return

Product Description

The Johnson Controls M9220-HGC-3 is a direct coupled actuator designed for HVAC systems. It operates at 24 volts AC and has a maximum torque of 177 lb-in with a spring return feature. This actuator is suitable for various applications in heating, ventilation, and air conditioning systems.

• Reversible mounting design
• Electronic stall detection for motor protection
• Removable coupler for adaptability

Product Highlights

This actuator simplifies installations and provides reliable performance in critical HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9220-HGC-3

Technical Specifications

• Power Supply: 24 VAC at 50/60 Hz
• Torque: 177 lb-in
• Operating Conditions: -40 F to 131 F
• Electrical Connection: 48 inches, 18 AWG wire leads
• Weight: 7.3 lbs
• Dimensions: 16.95 x 6.85 x 3.8 inches
• Housing: NEMA 2, IP54 rated
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 15.5 VA running, 7.7 VA holding
