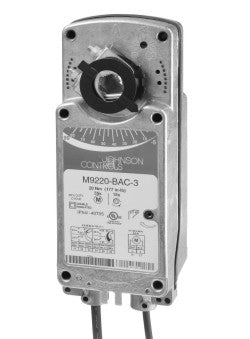

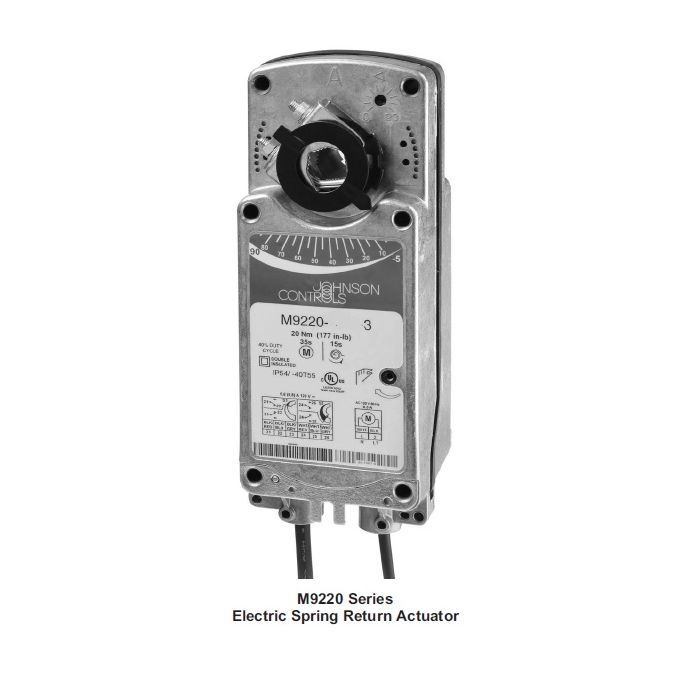

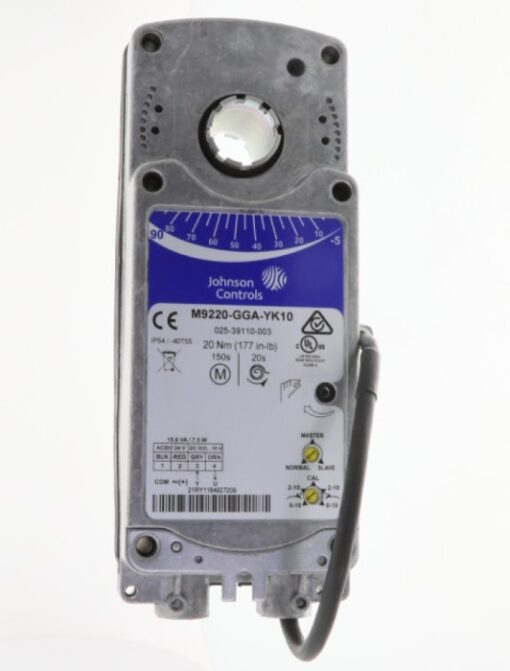

Johnson Controls M9220-GGA-3G Damper Actuator 20 Nm Spring Return

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: M9220-GGA-3G
Availability: In Stock

Ships same day if ordered by 12 pm
$566.37
$566.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Johnson Controls M9220-GGA-3G is a damper actuator designed for HVAC systems. It operates on twenty-four volts alternating current or direct current. This device provides proportional control and a torque rating of twenty Nm or one hundred seventy-seven inch-pounds. It is suitable for driving dampers, ensuring efficient airflow within systems.

  • Torque of 177 inch-pounds
  • Electronic stall detection feature
  • Manual override available

Product Highlights

This actuator includes a brushless DC motor and allows selectable action through wiring or switch repositioning, accommodating two-position, floating, or proportional control.

Product Information

Standard Information

  • Brand: Johnson Controls
  • MPN: M9220-GGA-3G
Technical Specifications
Actuator Type
Damper
Control Input
Modulating
Enclosure Rating
NEMA 2 (IP54)
Torque
177 inch-pounds
Input Voltage
24 VAC
Power Consumption
15.5 VA
Motor
Brushless DC
Operating Temperature
-40 to 131 degrees Fahrenheit
Operating Humidity
0 to 95% RH
Warranty
5 years
