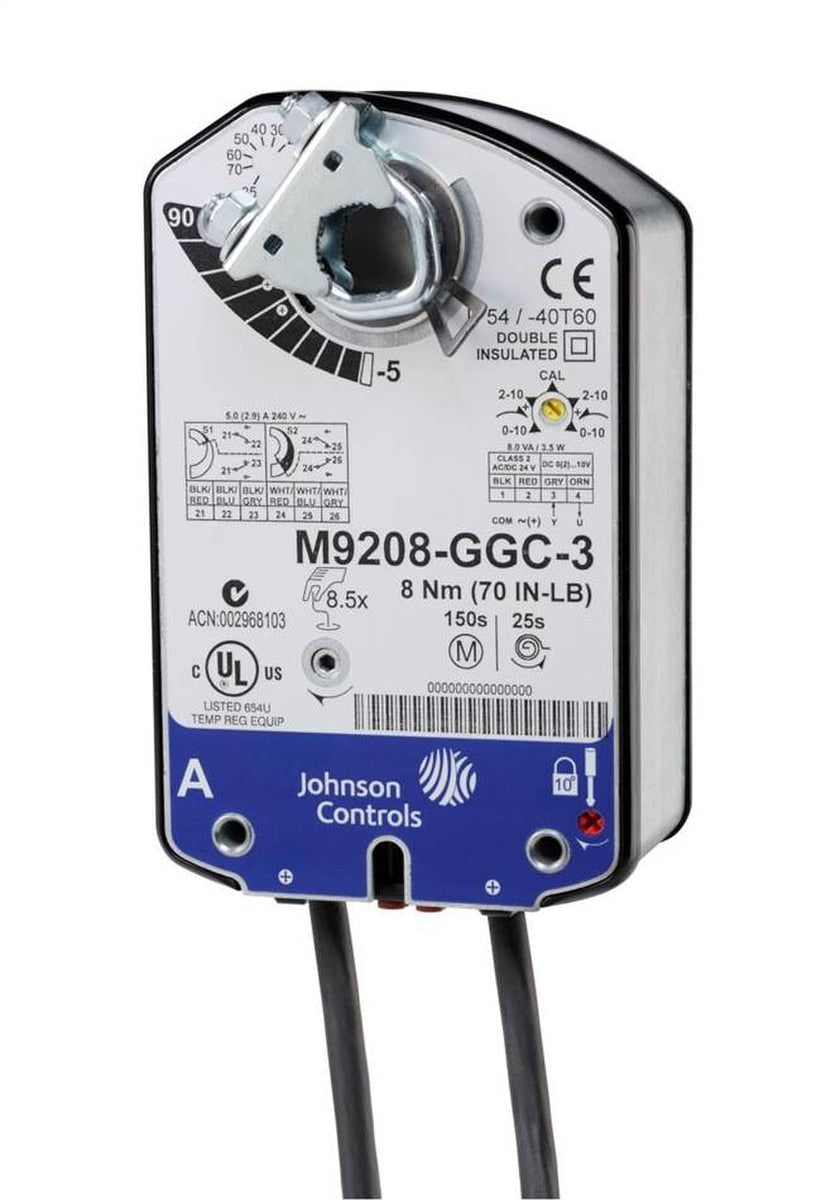

Johnson Controls M9208-GGC-3 Direct Coupled 70 lb-in Spring-Return

Product Description

The Johnson Controls M9208-GGC-3 is a direct coupled actuator designed for HVAC systems. It operates on twenty-four volts AC and features spring-return functionality. This actuator is ideal for controlling dampers effectively and safely. It provides a rated torque of seventy pound-inches, achieving reliable performance in various conditions.

• Reversible mounting options
• Electronic stall detection for efficient operation
• Microprocessor-controlled brushless DC motor

Product Highlights

This actuator is designed to ensure accurate airflow control in HVAC applications. Its compact design makes it suitable for tight spaces. The integral cables simplify installation by featuring colored and numbered conductors.

Product Information

Standard Information

• Brand: Johnson Controls
• Minimum Order Quantity: 1
• Part Number: M9208-GGC-3

Technical Specifications

• Electrical Connection: 48 inches 18 AWG appliance cable with integral 3/8 inch FMC connectors
• Operating Conditions: Negative forty degrees Fahrenheit to one hundred forty degrees Fahrenheit
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Housing: NEMA 2, IP54
• Auxiliary Switch: 2 SPDT
