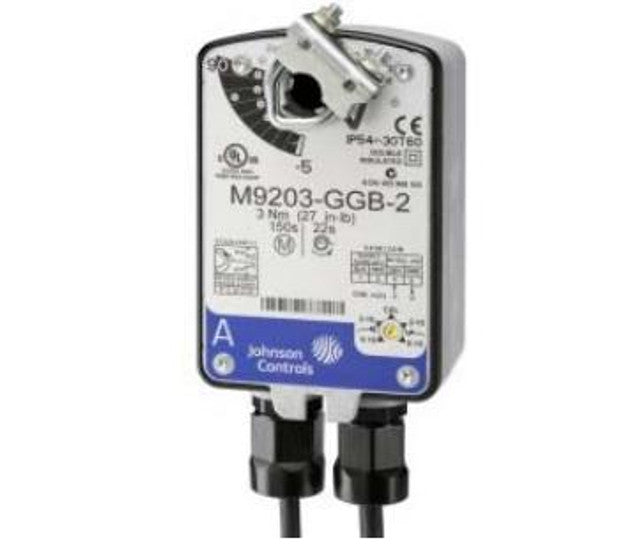

Johnson Controls M9203-GGA-2Z Direct Coupled, 27 lb-in, Spring-Return

Product Description

The Johnson Controls M9203-GGA-2Z actuator is designed for precise control in various HVAC applications. Operating on 24 volts, it features a robust construction suitable for demanding tasks. The actuator includes a spring-return mechanism, providing reliable performance in industrial settings.

• Input Signal: 0 to 10 VDC with position feedback.
• Power consumption: 5.1 VA running, 2.8 VA holding.
• Operating conditions: from -22 F to 140 F (-30 C to 60 C).

Product Highlights

This actuator complements HVAC systems by controlling dampers and valves efficiently, ensuring desired airflow and climate control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9203-GGA-2Z

Technical Specifications

• Voltage: 24 VAC
• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Dimensions: 8.25 x 6.9 x 3.85 inches
• Electrical Connection: 120 in. 19 AWG Plenum Cable with 1/2 in. Conduit Connector
• Housing: NEMA 2, IP54
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
