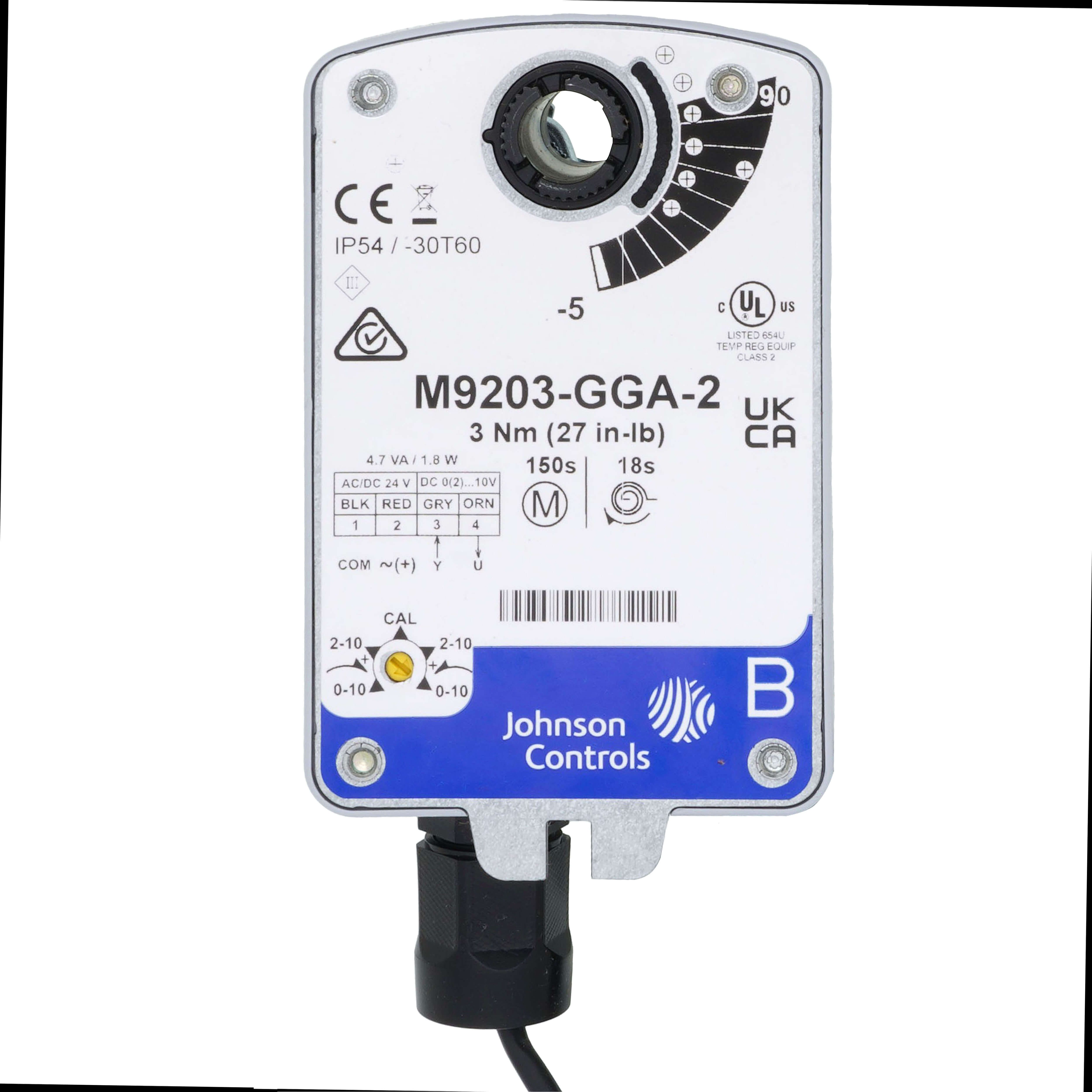

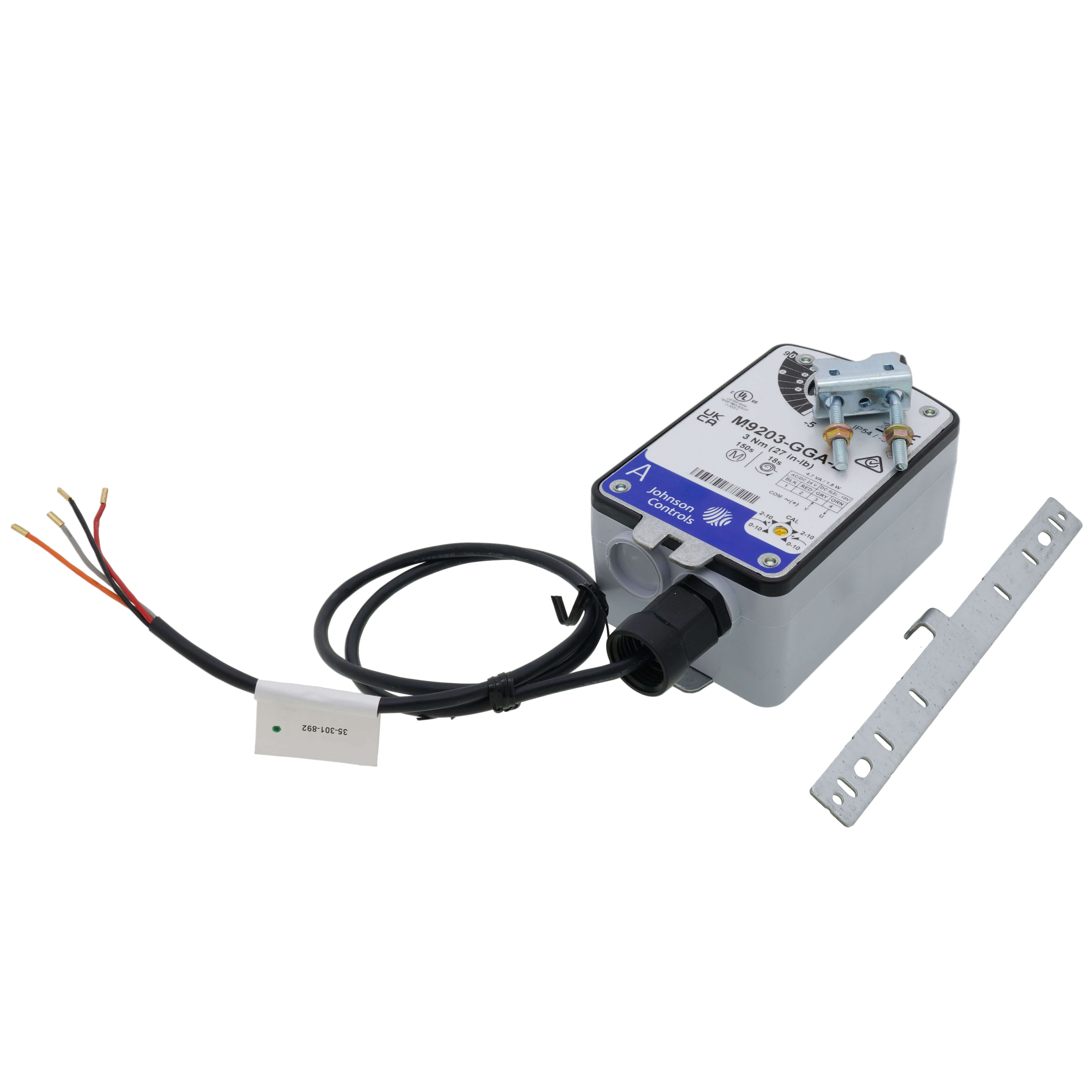

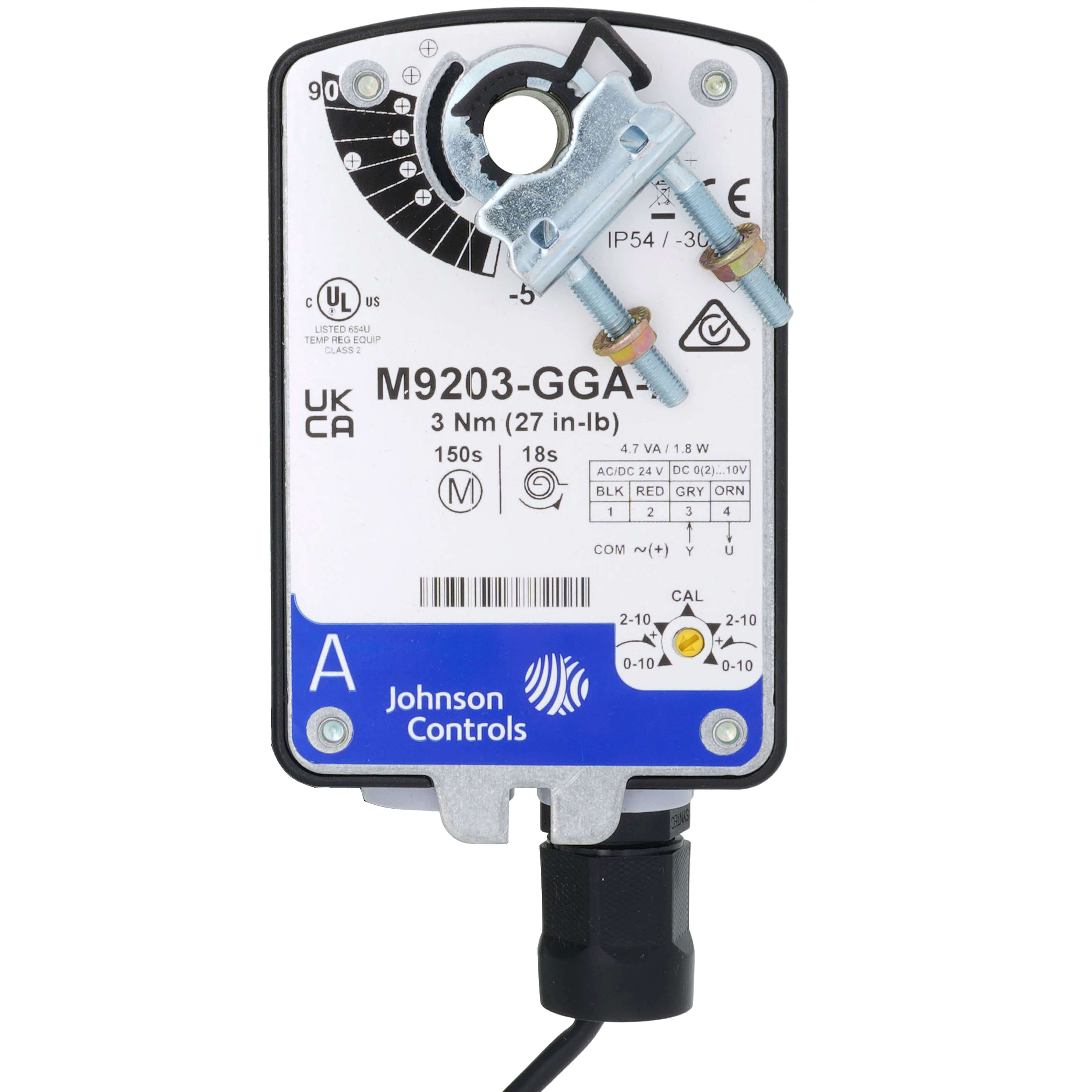

Johnson Controls M9203-GGA-2 Direct Coupled 27 lb-in Spring-Return

Product Description

The Johnson Controls M9203-GGA-2 is a 24-volt proportional actuator designed for the control of dampers in HVAC systems. It features a spring-return mechanism and a 150-second stroke time, ensuring reliable performance under various conditions. This actuator directly connects to damper shafts with a torque rating of 27 lb-in.

• 24 VAC with 6 VA input for efficient operation
• Microprocessor-controlled brushless DC motor
• Directly couples without requiring damper linkage

Product Highlights

The M9203-GGA-2 is built for durability and efficient actuator operation in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9203-GGA-2

Technical Specifications

• Torque Rating: 27 lb-in (3 N·m)
• Power Consumption: 4.7 VA running, 2.7 VA holding
• Operating Temperature: -22 F to 140 F (-30 C to 60 C)
• Electrical Connection: 120 inches, 19 AWG plenum cable with 1/2 inch conduit connector
• Housing Rating: NEMA 2, IP54
