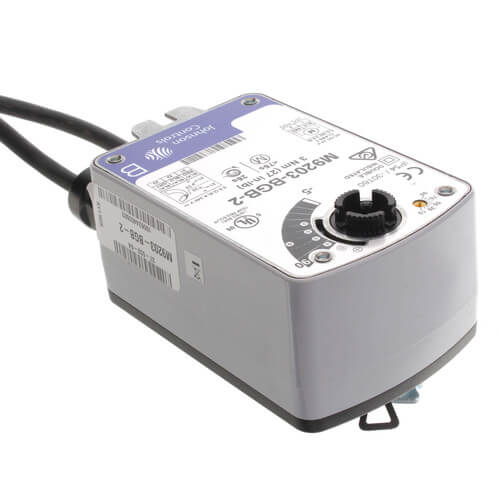

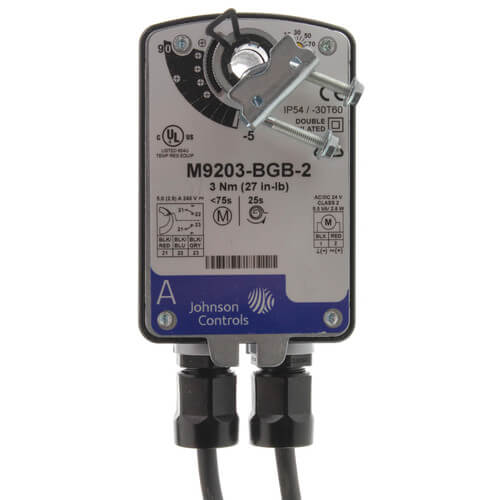

Johnson Controls M9203-BGB-2 Direct Coupled, 27 lb-in, Spring-Return

Product Description

The Johnson Controls M9203-BGB-2 is a 24-volt actuator designed for efficient control in various applications. This actuator features a direct coupling capability and provides a torque rating of 27 lb-in, making it suitable for HVAC systems.

• Utilizes an electronic stall detection feature.
• Constructed with double insulation for added safety.
• Microprocessor-controlled brushless DC motor for precise performance.

Product Highlights

This actuator offers reliable operation in demanding environments, thanks to its robust construction and low power consumption. It integrates seamlessly into HVAC systems and is optimized for direct mounting, eliminating the need for additional damper linkages.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9203-BGB-2

Technical Specifications

• Housing: NEMA 2, IP54
• Power Consumption: 5.0 VA running, 2.5 VA holding
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)

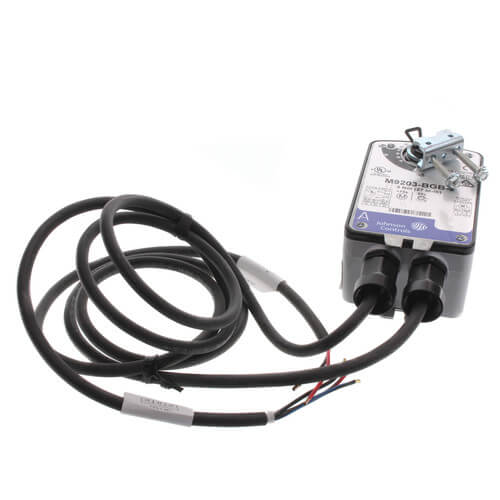

• Electrical Connection: 48 inches 18 AWG appliance cable with 1/2 inch conduit connector
• Auxiliary Switch: 1 SPDT
