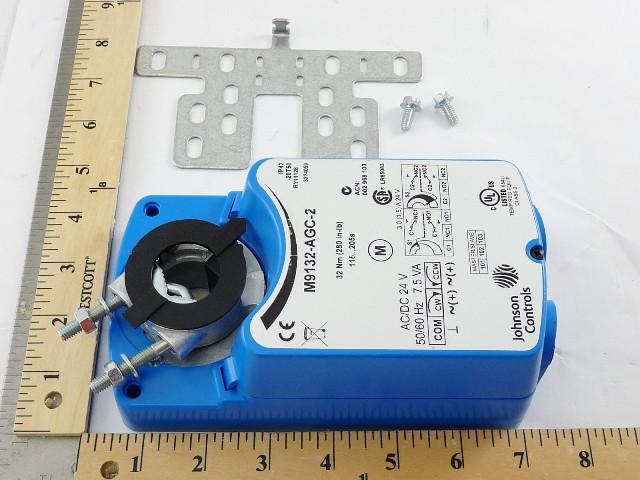

Johnson Controls M9132-AGC-2 Non-Spring Return Rotary Actuator 280 lb-in

Product Description

The Johnson Controls M9132-AGC-2 is a robust non-spring return rotary actuator designed to deliver precise and reliable performance. Offering a powerful torque output of 280 inch-pounds, this actuator is suitable for controlling dampers and valves in various applications.

• Integrated with on/off and floating point control
• Features two auxiliary switches for enhanced functionality
• Can be direct or remote mounted for flexible installation options

Product Highlights

Equipped with a unique self-centering clamping shaft, the M9132-AGC-2 ensures secure and centered installation. It operates efficiently on 24 VAC/VDC, making it versatile for use in diverse building management systems.

Product Information

Standard Information

• Torque: 280 inch-pounds
• Control type: On/Off, Floating

Technical Specifications

• Voltage: 24 VAC/VDC
• Rotation: Adjustable from 0 to 90 degrees in 5-degree increments
• Dimensions: Height: 6 inches, Width: 4 1/4 inches, Depth: 2 11/16 inches
• Switch Type: 2 SPDT
