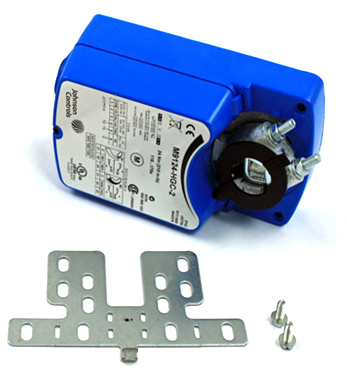

Johnson Controls M9124-HGC-2 Electric Non-Spring-Return Actuator 24V 210 in-lb

Product Description

The Johnson Controls M9124-HGC-2 Electric Non-Spring-Return Actuator is designed for robust, reliable performance in commercial HVAC applications. This high-quality actuator operates with a 24V power supply, delivering 210 inch-pounds of torque and adjustable rotational settings from zero to 90 degrees.

• Direct-mount simplifies installation and setup.
• Features multiple control inputs for diverse applications.
• Equipped with electronic stall detection to enhance safety and durability.

Product Highlights

Optimize HVAC system efficiency and reliability with this advanced actuator, which supports both damper and valve applications. Its compact and versatile design makes it ideal for a wide range of heating and cooling tasks.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9124-HGC-2

Technical Specifications

• Power Supply: 24V AC/DC
• Torque: 210 inch-pounds
• Control Type: On/Off, Floating, Proportional, Resistive
• Mounting Type: Direct or remote
• Operational Temperature Range: -4 to 122 degrees Fahrenheit
• Shaft Compatibility: Up to 3/4 inch round, 5/8 inch square
• Rotation: 0 to 90 degrees, adjustable
• Auxiliary Switches: 2-SPDT
