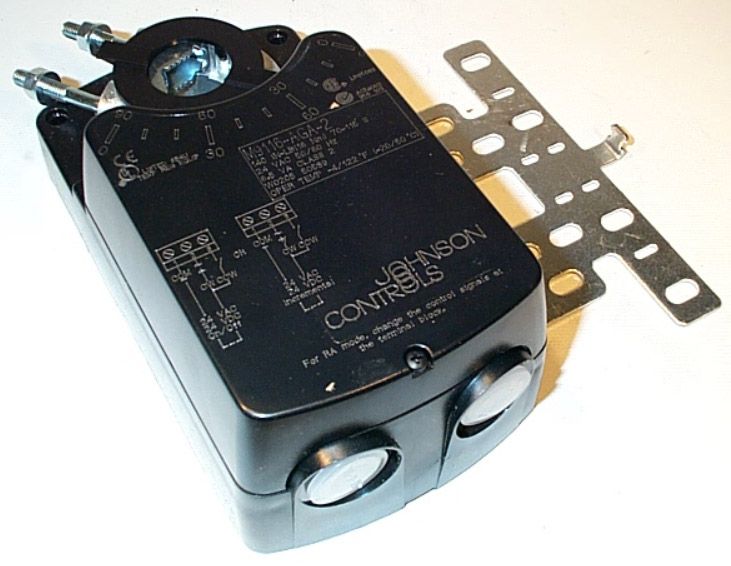

Johnson Controls M9116-GGC-2 Electric Non-Spring-Return Actuator 16 Nm Torque 2-SPDT Auxiliary Switch

Product Description

Explore the advanced Johnson Controls M9116-GGC-2, an electric non-spring-return actuator featuring direct or remote damper mount capability and a robust 16 Nm torque performance. This model operates on 24V AC/DC and employs proportional control with 0-10 VDC input.

• Easy installation with direct coupling - no damper linkage required.
• Compatible with on/off, floating, proportional, or resistive controllers.
• Adjustable rotation from 0 to 90 degrees in 5-degree increments.

Product Highlights

Providing reliable performance with its high-torque output and versatile control settings, this actuator is a top choice for HVAC systems that require precise air damper and valve positioning. Its versatility is supported by DC 0(2) to 10 V control and dual auxiliary switches that provide additional operational functionalities.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: M9116-GGC-2

Technical Specifications

• Power Source: 24V AC/DC
• Torque: 16 Nm
• Control Signal: 0-10 VDC
• Rotation Adjustment: 0 to 90 degrees
