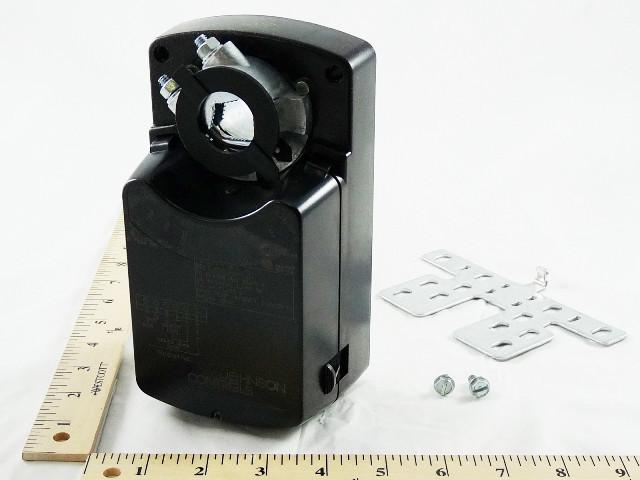

Johnson Controls M9108-JGA-2 Electric Non-Spring Return Actuator 24V 70 lb-in Potentiometer

Product Description

The Johnson Controls M9108-JGA-2 is a high-performance electric non-spring return actuator designed for direct mounting that operates on a 24V power supply. This actuator is suited for on/off, floating, proportional, or resistive controllers and is capable of handling round shafts up to three quarters of an inch and square shafts up to five-eighths of an inch.

• Maximum torque output of 280 lb-in, extendable up to 560 lb-in when used in tandem configurations
• Position feedback includes switches, potentiometer options, or a DC 0 (2) to 10 V signal for precise control
• Rotational angle adjustment from zero to ninety degrees in five-degree increments, with optional integral auxiliary switches

Product Highlights

This actuator offers simplified installation without the need for damper linkage and features electronic stall detection for improved reliability.

Product Information

Standard Information

• Actuator Type: Electric Non-Spring Return
• Torque Capability: 70 lb-in standard, 280 to 560 lb-in tandem

Technical Specifications

• Power Requirement: 24V AC/DC
• Control Compatibility: On/off, floating, proportional, resistive
• Shaft Compatibility: Up to three quarters inch round, five-eighths inch square
• Operational Temperature Range: -4 to 122 degrees Fahrenheit
• Installation: Direct mount, optional remote mount
