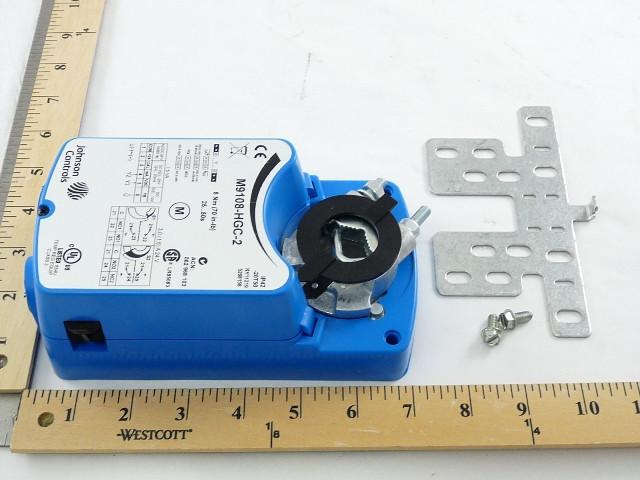

Johnson Controls M9108-HGC-2 Electric Non-Spring-Return Actuator - 70#IN 2SW 0-10vdc/4-20ma Feedback

Product Description

The Johnson Controls M9108-HGC-2 Electric Non-Spring-Return Actuator is a robust device designed for reliable operation in a variety of HVAC applications. Engineered by Johnson Controls, this actuator ensures precise control of dampers and valves in heating, ventilation, and air conditioning systems.

• Supports both 0-10 VDC and 4-20 mA control signals.
• Features a high torque output up to 70 inch-pounds.
• Mechanically adjustable rotation angle from zero to 90 degrees.

Product Highlights

The actuator is equipped with two SPDT auxiliary switches for enhanced functionality and feedback. Its durable design facilitates direct or remote mounting options without the need for a damper linkage, simplifying installation.

Product Information

Technical Specifications

• Brand: Johnson Controls
• MPN: M9108-HGC-2
• Stroke Degree: 90
• Torque: 70 inch-pounds
• Control Signal: 0-10 VDC, 4-20 mA
• Mounting Type: Direct or remote
• Feedback Options: Position feedback through switches, potentiometer or DC signal
• Operational Temperature Range: -4 to 122 degrees Fahrenheit
