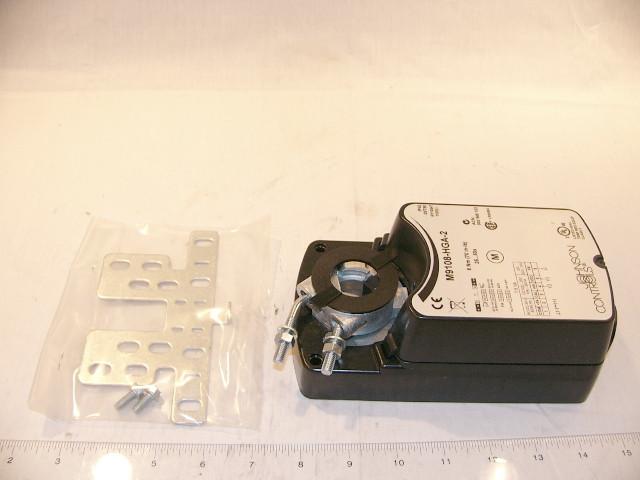

Johnson Controls M9108-HGA-2 Electric Non-Spring Return Actuator 24V 70in-lb

Product Description

The Johnson Controls M9108-HGA-2 Electric Non-Spring Return Actuator is a precision engineering device designed to automate damper and valve operations. This model operates on 24V AC/DC power and delivers a torque of 70 in-lb. It's equipped to handle on/off, floating, proportional, or resistive controls, making it versatile for various HVAC applications.

• Direct-mount capability simplifies installation by eliminating the need for damper linkage.
• Adjustable rotation from 0 to 90 degrees in 5-degree increments for precise control.
• Built with electronic stall detection to deactivate the motor during stall conditions, enhancing reliability.

Product Highlights

This actuator's robust design is complemented by a self-centering clamping shaft that promises ease of integration and operational reliability. An anti-rotation bracket is included to ensure stable and secure mounting.

Product Information

Technical Specifications

• Brand: Johnson Controls
• MPN: M9108-HGA-2
• Power Consumption: 7.5 VA
• Operating Voltage: 24V AC/DC
• Operating Temperature Range: -4 to 122 degrees Fahrenheit
• Control Inputs: On/Off, Proportional, Floating, Resistive
• Mounting Type: Direct Mount
• Signal Type: Proportional
• Stroke Degree: 90
• Dimensions: 6 inches height x 4.25 inches width x 2.67 inches depth
