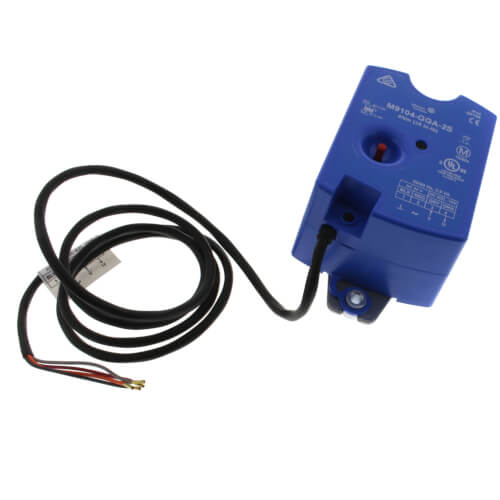

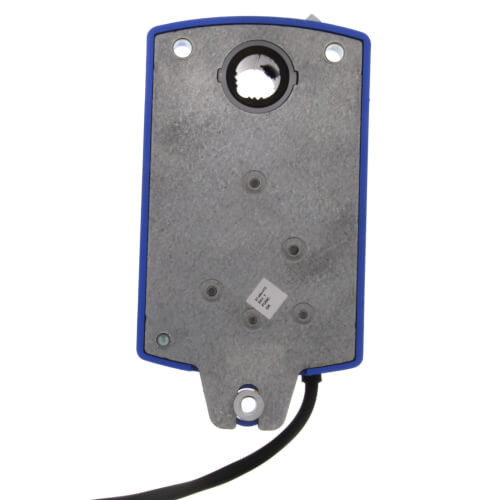

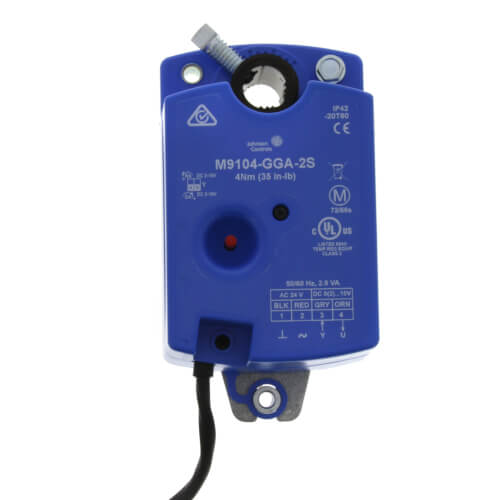

Johnson Controls M9104-GGA-2S Direct Mount Actuator 35 lb-in

Product Description

The Johnson Controls M9104-GGA-2S is a direct mount actuator with a torque rating of thirty-five pound-inches. Designed for use in HVAC systems, it operates on twenty-four volts AC power and provides proportional control with a DC voltage range of zero to ten volts. This actuator is suitable for various applications, including air handling units and dampers.

• Non-spring return design for manual positioning
• Operates within a temperature range of -4 F to 140 F
• Compact construction for easy installation

Product Highlights

This actuator offers reliable performance in controlling airflow in HVAC systems and is built for durability.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9104-GGA-2S

Technical Specifications

• Torque: 35 lb-in
• Power Supply: 24 VAC
• Electrical Connection: M3 Screw Terminals
• Power Consumption: 2.9 VA
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Housing: NEMA 1, IP40
• Noise Rating: 35 dBA Maximum Audible Noise Rating at 1 Meter
• Travel Time: 30 seconds for 90 degrees of rotation
