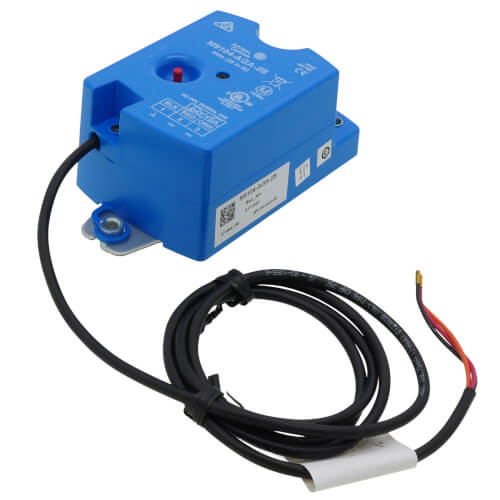

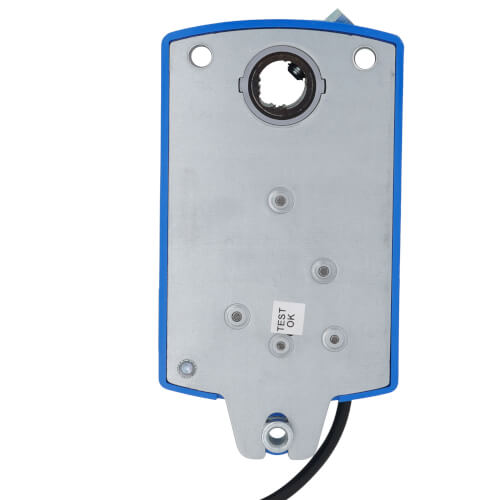

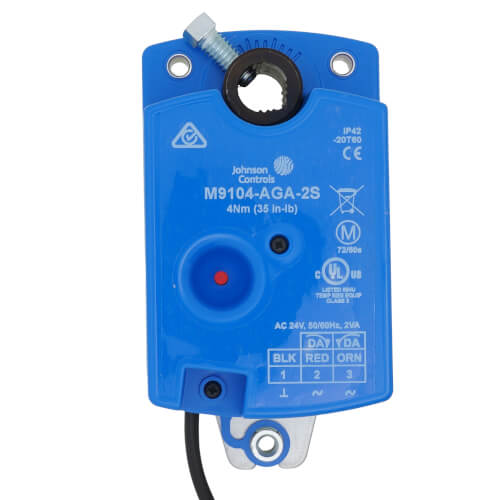

Johnson Controls M9104-AGA-2S Series M9104 Electric Non-Spring-Return Actuator, Floating Control, 35 lb-in Torque

Product Description

The Johnson Controls M9104-AGA-2S Series M9104 Electric Non-Spring-Return Actuator offers a reliable solution for controlling dampers and valves in HVAC systems. This actuator operates on 24V AC power and features floating control with a running torque of 35 lb-in.

• Non-spring return actuator
• Floating control
• 35 lb-in torque

Product Highlights

This electric actuator is designed for direct mounting and is equipped with a self-centering clamping shaft. It is suitable for small- to medium-sized dampers and Variable Air Volume (VAV) boxes. The actuator includes a plenum-rated cable and achieves a 90-degree rotation in 60 seconds.

Product Information

Standard Information

• Voltage: 24V AC
• Torque: 35 lb-in

Technical Specifications

• Actuator Type: Floating Point
• Fail Safe Mode: Non-Spring Return
• Timing: 60 seconds
• Shaft Type: Self-Centering Clamping
• Mounting Type: Direct Mount
• Power Consumption: 2.1VA
• Ambient Temperature Range: -4 to 140 Degrees F
• Includes: Anti Rotation Bracket
