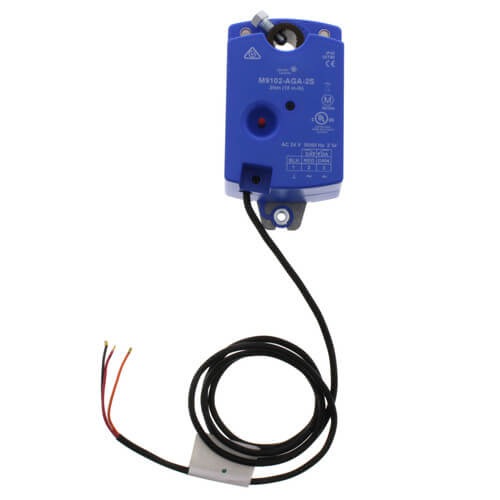

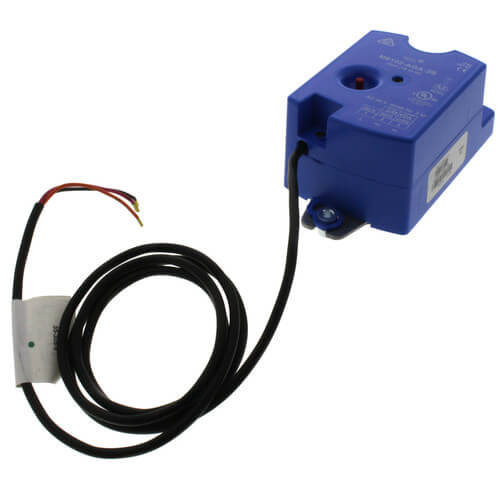

Johnson Controls M9102-AGA-2S Direct Mount Actuator, 18 lb-in

Product Description

The Johnson Controls M9102-AGA-2S is a 24V non-spring return actuator designed for various applications. This unit supports up to 18 lb-in of torque, suitable for tasks in industrial automation, robotics, and HVAC systems.

• Compact design facilitates easy installation
• IP66-rated housing ensures protection against dust and water
• Floating piston design minimizes wear and enhances durability

Product Highlights

This actuator features a smooth operation due to its advanced design. It comes equipped with a limit switch for precise control and a built-in manual release gear. The aluminum construction provides corrosion resistance and longevity, making it ideal for multiple environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9102-AGA-2S

Technical Specifications

• Torque: 18 lb-in
• Voltage: 24V AC
• Power Consumption: 2.5 VA
• Operating Conditions: -4 F To 140 F (-20 C To 60 C)
• Electrical Connection: 48 in. UL 444 Type CMP Plenum Rated Cable with 19 AWG Conductors
• Housing Rating: NEMA 1, IP42
• Weight: 1.15 lbs
• Dimensions: Length 4.8 in, Width 8.15 in, Height 4.55 in
