Johnson Controls M9000-536 Linkage Kit for HVAC Valve Actuators (1 1/2 Inch Stroke)

Product Description

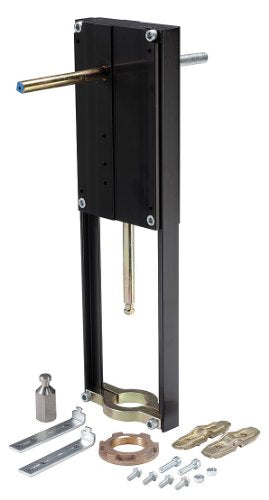

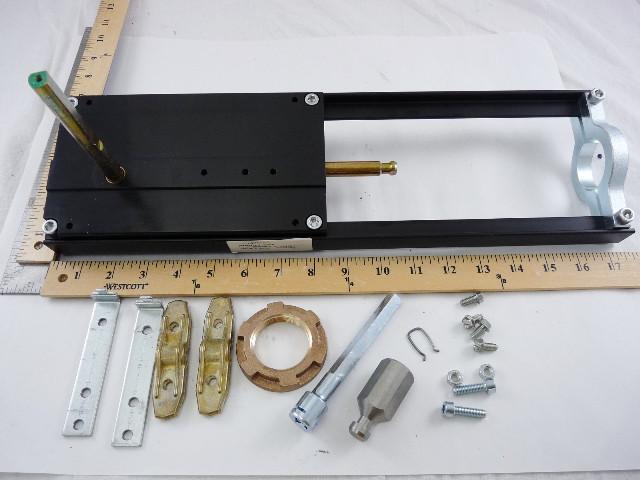

The Johnson Controls M9000-536 Linkage Kit is designed to optimize the mechanical connection between Johnson Controls electric actuators and VG2000 Series Cast Iron Flanged Valves. Ideal for both new installations and upgrades, this kit supports valve sizes ranging from 2 1/2 inches to 6 inches.

• Simplifies installation with dedicated models for different actuator types.
• Features a universal anti-rotation bracket compatible with both spring-return and non-spring-return actuators.
• Includes a two-bolt coupler clamp for easy attachment to valve stems.

Product Highlights

Facilitate seamless transitions from pneumatic or older electric actuators with ease, ensuring a secure and effective operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9000-536

Technical Specifications

• Type: Linkage Kit
• Series: M9000-53x
• Compatible actuators: M9116, M9124, M9220
• Force output: 561 lb minimum with tandem actuator setup
• Manufacture Location: Mexico
• Compatibility: VG2000 Series Cast Iron Valves
