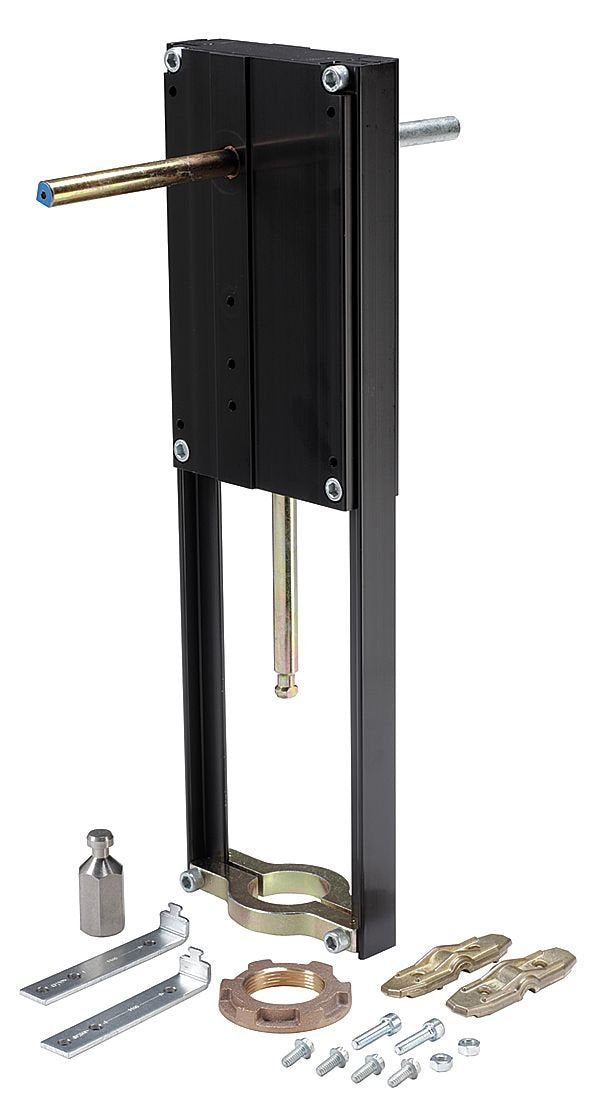

Johnson Controls M9000-534 Valve Linkage Kit for Field Mounting Actuators

Product Description

The Johnson Controls M9000-534 Valve Linkage Kit is designed for robust field performance, connecting M9116 and M9124 Series Non-Spring-Return and M9220 Series Spring-Return Electric Actuators to VG2000 Series Cast Iron Flanged Valves, ranging from 2.5 inches to 6 inches in size. Ideal for replacing pneumatic or older electric actuators on Johnson Controls valves.

• Adaptable with various actuator models.
• Facilitates conversion between single and tandem actuator setups.
• Two-bolt coupler clamp simplifies linkage to the valve stem.

Product Highlights

This kit includes a unique single anti-rotation bracket that simplifies installation and is compatible with both spring-return and non-spring-return actuators. Its robust design ensures a minimum force output of 631 pounds, suitable for high-demand applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: M9000-534

Technical Specifications

• Valve Compatibility: VG2000 Series Cast Iron Flanged Valves
• Actuator Compatibility: M9116, M9124, M9220
• Valve Stem Diameter: 0.5 inches
• Nominal Valve Stroke: 1.375 inches
• Minimum Force Output: 631 pounds
