Johnson Controls M9000-530 Linkage Kit 3/4 Stroke Replacement MPN

Product Description

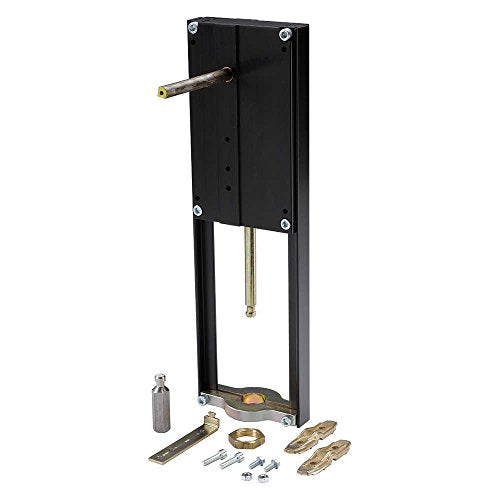

The Johnson Controls M9000-530 Linkage Kit is designed for mounting M9116, M9124, and M9220 series electric actuators to VG2000 series cast iron flanged valves. This kit supports a valve stem diameter of three eighths inches and a nominal valve stroke of three quarters inches, ensuring compatibility with various applications.

• Dedicated models for easy installation.
• Includes an anti-rotation bracket for actuator compatibility.
• Two-bolt coupler clamp allows easy attachment to the valve stem.

Product Highlights

This linkage kit provides a reliable connection for controlling airflow in HVAC systems while accommodating varying actuator types.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9000-530

Technical Specifications

• Item Number: M9000-530
• Compatible Actuators: M9116, M9124, M9220
• Valve Stem Diameter: 3/8 inches
• Nominal Valve Stroke: 3/4 inches
• Force Output: 605 lb minimum with M9124 series actuator
• Material: Cast iron
• Weight: Approximately five pounds
• Installation Compatibility: Converts from pneumatic or older electric actuator setups
