Johnson Controls M9000-310 Weather Shield Enclosure For M9106, M9108, M9109 Series

Product Description

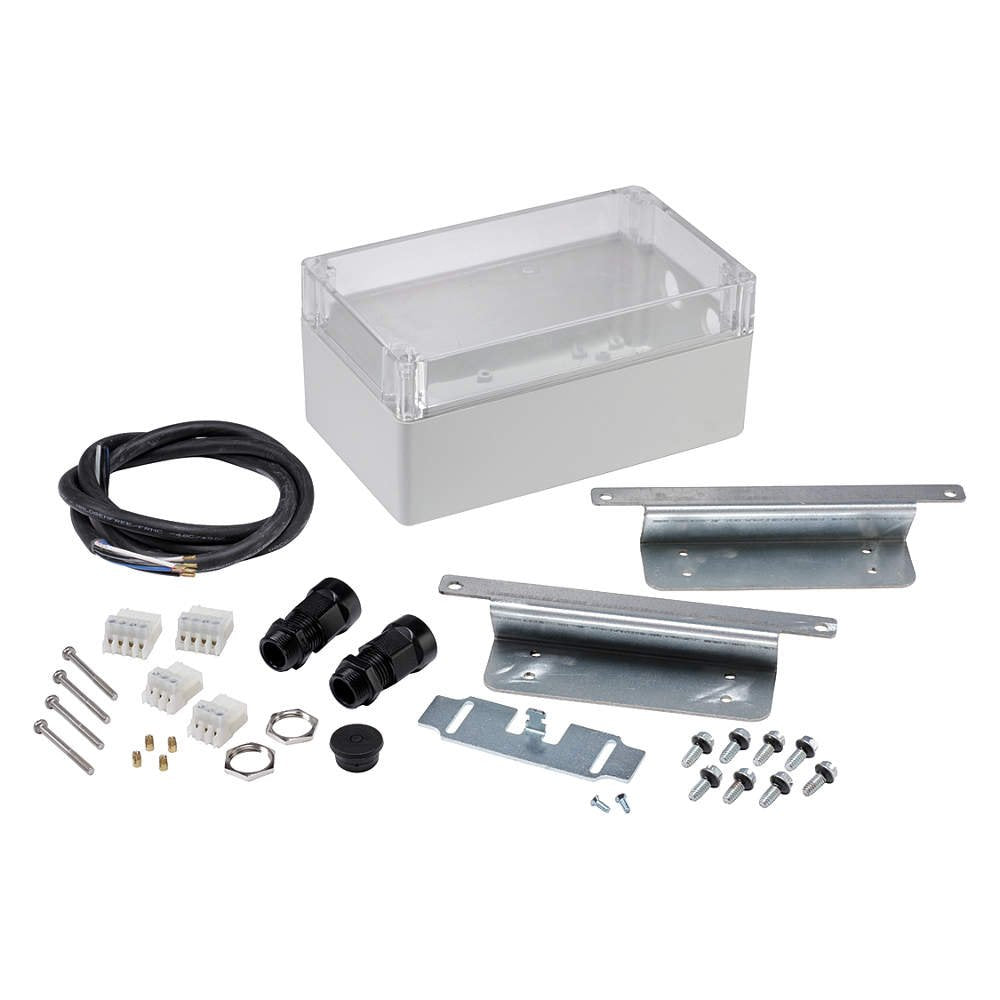

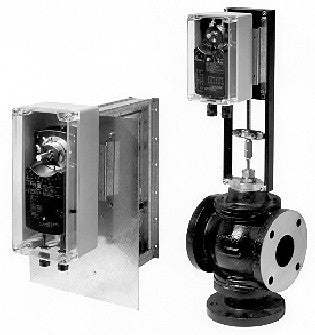

The Johnson Controls M9000-310 Weather Shield Enclosure is designed for the M9106, M9108, and M9109 Series Electric Non-Spring-Return Actuators. This enclosure is suitable for control dampers and iron flanged valve applications, providing excellent protection for electric actuators.

• Impact-grade plastic enclosure provides robust impact resistance.
• Ultraviolet inhibitors in the cover extend the service life.
• Transparent cover allows easy visibility of the electric actuator.

Product Highlights

This weather shield enclosure protects the actuator from rain, freezing rain, sleet, snow, and corrosion. It can be used both indoors and outdoors, although it may not prevent externally formed ice from restricting the motion of the rotary shaft. The cover features ultraviolet inhibitors to prevent brittleness from sun exposure, and the form-fitting seal prevents water and moisture from entering the enclosure.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9000-310
• Product Type: Enclosure
• Category: Sensors

Technical Specifications

• Item Number: M9000-310
• Brand: Johnson Controls
• Enclosure Type: NEMA-3R
• Fail Safe Mode: Non-Spring Return
• Overall Depth: 3.5 inches
• Overall Width: 4.75 inches
• Overall Height: 7.875 inches
• Weight: 2.72 pounds
